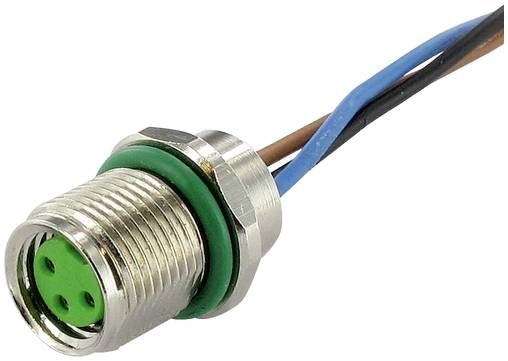

Murrelektronik 7000-08585-9690020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M8
Connection side B
Cable, open end
No. of pins
4
Nominal voltage
60
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Type: Socket
- Page 2 Connection: Free wires
- Cable gland: Brass
- Insulating material group: I
- M8 family design
- CE 0
- Protection class IP67
- Lock type: Screw thread
- Additional condition protection: Inserted;screwed
- Gender: Female
- Coating contact: Gold-plated
- Material: Brass
- Mounting type: Screw thread
- Mounting thread M8 x 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: A
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M8
- Sensor/actuator cable
- Tightening torque: 0.4
- Thread M8 x 1
- Pollution level 3
- Operating voltage DC max. 60
- Number of pins: 4
- Operating voltage AC max. 50
- Protection class NEMA 6P;4;3
- ATEX 0
- Operating current: 0 A … 4 A.
- Operating current per contact max. 4
- Max. Operating current: 4
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: PUR-strands 4x0.25 0.2m
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Material short text: MSFFH-T969_0.2
- UL 50E: Yes
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 60 V
- PRODUCT STANDARD: EN / IEC 61076-2-104 (M8)
- Type
MSFFH-T969_0.2
- Product type
Sensor/actuator cable
- Connection side A
M8
- Connection side B
Cable, open end
- No. of pins
4
- Nominal voltage
60
- Contact material
Copper alloy gold plated
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
7000-08585-9690020
- Content
1 pc(s)
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763762 Murrelektronik 7000-08585-9690020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Datasheet 3763762 Murrelektronik 7000-08585-9690020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763762 Murrelektronik 7000-08585-9690020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Description
M8 socket Flange A-coded HWM PUR-wires 4x0.25 0.2m-M8 socket Flange A-coded HWM-Murrelektronik GmbH
