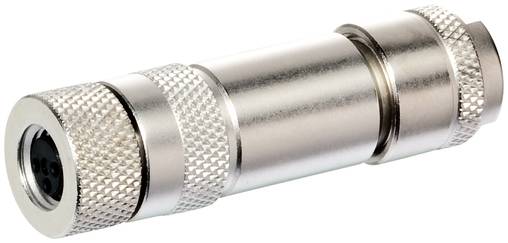

Murrelektronik 7000-08661-0000000 Bullet connector straight Total number of pins: 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
straight
Total no. of pins
3
Connection
M8 socket
Screw terminal
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Shielded;without LED
- Type: Socket
- Page 2 Connection: Screw terminals
- Insulation material group II.
- M8 family design
- CE 1
- Protection class IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Shielded: Yes
- Depth: 14
- Material locking: Brass
- Width: 14
- Gender: Female
- Coating contact: Gold-plated
- Coating locking: Nickel-plated
- Mounting type: Plug-in; screwed; vibration proof
- Mounting thread M8 x 1
- China RoHS 50: 1
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Height: 49
- Min. Clamping range: 4
- Material contact: Brass
- Coding: A
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 5.5
- Over voltage category III
- Page 1 Connection: M8
- Sensor/actuator cable
- CURus: 1
- Tightening torque: 0.4
- Thread M8 x 1
- Pollution level 3
- Operating voltage DC max. 30
- Connection cross-section max.: 0.5
- Page 1 Cable outlet 0°
- Number of poles: 3
- Operating current: 0 A … 4 A.
- Cable outlet: Straight
- Operating current per contact max. 4
- Max. Operating current: 4
- Operating current min.: 0
- Page 1 Number of poles: 3
- Sales text 2: 3-pin, 0.14 - 0.5mm², 4 - 5.5mm, shielded
- Min. Operating voltage: 0
- Max. Operating voltage: 30
- Material short text: M8 SOCKET GER.4..5.5 3-pin gold-plated
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 30 V
- Connection cross-section min.: 0.14
- Clamping range: 4 mm … 5.5 mm
- Type
M8 BUCHSE GER.4..5,5 3pol.gesch.
- Product type
Bullet connector
- Connector type
straight
- Total no. of pins
3
- Connection
M8 socket
Screw terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Contact material
Brass
- Manufacturer part #
7000-08661-0000000
- Number of pins
3
- Width
14 mm
- Height
49 mm
- Depth
14 mm
- max. cross section
0.5 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 0.5 mm²
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762747 Murrelektronik 7000-08661-0000000 Bullet connector straight Total number of pins: 3 1 pc(s)
Datasheet 3762747 Murrelektronik 7000-08661-0000000 Bullet connector straight Total number of pins: 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3762747 Murrelektronik 7000-08661-0000000 Bullet connector straight Total number of pins: 3 1 pc(s)
Description
M8 socket 0° A-coded Screw terminal connection 3-pin, 0.14 - 0.5mm², 4 - 5.5mm, shielded M8 socket 0° A-coded Screw terminal connection-Murrelektronik GmbH
