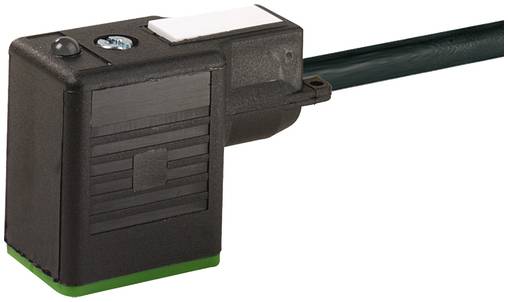

Murrelektronik 7000-11081-6160100 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side B
Cable, open end
No. of pins
3
Nominal voltage
24
Type
MSUDK-KB1Z-616_1.0
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: LED; unshielded
- Type: Socket
- Page 2 Connection: Free cable end
- Steel cable gland
- Insulating material group: I
- Family-Design: Square connector type BI
- CE 1
- Protection class IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Material locking: Steel
- Seal: PUR
- Colour of housing: Black
- Gender: Female
- Coating locking: Zinc-plated
- Material PBT
- Mounting method: Plugged-in; screwed
- Fastening thread: M3x31
- China RoHS 20: 1
- Min. Operating temperature: -25
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: Type BI (11 mm)
- Sensor/actuator cable
- Interference suppressor: Diode
- Tightening torque: 0.4
- Operating voltage DC 24
- Thread: M3x31
- Operating voltage min. DC: 18
- Pollution level 3
- Operating voltage AC:24
- Operating voltage DC max. 30
- Page 1 Cable outlet 90°
- Number of poles: 3
- Operating voltage AC max. 28.8
- Operating current: 0 A … 4 A.
- Operating current per contact max. 4
- Max. Operating current: 4
- CCSAus: 1
- Operating current min.: 0
- Max. Power consumption: 15
- Page 1 Number of poles: 3
- Operating voltage AC min.: 19.2
- Sales text 2: PVC 3x0.75 bk 1m
- Min. Operating voltage: 18
- Max. Operating voltage: 30
- Material short text: MSUDK-KB1Z-616_1.0
- Max. Switch-off peak voltage: 55
- Dimensioning surge voltage 0.8
- Supply voltage: 18 V – 30 V
- Max. Fall delay time: 20
- Type
MSUDK-KB1Z-616_1.0
- Product type
Sensor/actuator cable
- Connection side B
Cable, open end
- No. of pins
3
- Nominal voltage
24
- Factory colour
Black
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-11081-6160100
- Content
1 pc(s)
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763778 Murrelektronik 7000-11081-6160100 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Datasheet 3763778 Murrelektronik 7000-11081-6160100 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763778 Murrelektronik 7000-11081-6160100 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Description
MSUD Valve plug BI-11mm 180° free cable-end PVC 3x0.75 SW 1m-MSUD valve socket BI-11mm 180° free cable-end-Murrelektronik GmbH
