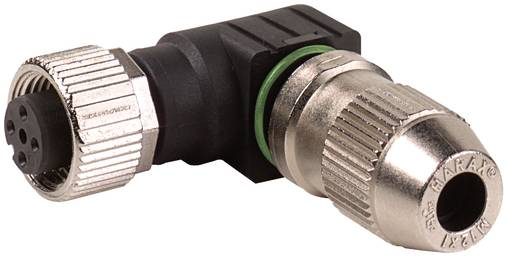

Murrelektronik 7000-12661-0000000 Bullet connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connection
M12 socket
Cut & Clip connector
Content
1 pc(s)
Type
MSDL0-AC-R-IDC
Max. temperature
85 °C
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Without LED; unshielded
- Type: Socket
- Page 2 Connection: Terminals
- M12 family design
- Protection class IP67
- Additional condition protection: Inserted;screwed
- Depth: 15
- Width: 40
- Mounting type: Plug-in; screwed; vibration proof
- Min. Operating temperature: -25
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Height: 37
- Min. Clamping range: 4
- Coding: A
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 5.1
- Page 1 Connection: M12
- Tightening torque: 0.6
- Operating voltage DC max. 32
- Connection cross-section max.: 0.5
- Page 1 Cable outlet 90°
- Operating voltage AC max. 32
- Operating current: 0 A … 4 A.
- Operating current per contact max. 4
- Max. Operating current: 4
- Operating current min.: 0
- Page 1 Number of poles: 3
- Sales text 2: 3-pin, 0.25 - 0.5mm², 4 - 5.1mm
- Min. Operating voltage: 0
- Wire insulation diameter min.: 1.2
- Max. Operating voltage: 32
- MATERIAL SHORT TEXT: MSDL0-AC-R-IDC
- Supply voltage: 0 V – 32 V
- Connection cross-section min.: 0.25
- Single wire diameter min.: 0.1
- Clamping range: 4 mm … 5.1 mm
- Wire insulation diameter max.: 1.6
- Type
MSDL0-AC-R-IDC
- Product type
Bullet connector
- Connection
M12 socket
Cut & Clip connector
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-25 °C
- Manufacturer part #
7000-12661-0000000
- Width
40 mm
- Height
37 mm
- Depth
15 mm
- max. cross section
0.5 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 0.5 mm²
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762748 Murrelektronik 7000-12661-0000000 Bullet connector 1 pc(s)
Datasheet 3762748 Murrelektronik 7000-12661-0000000 Bullet connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3762748 Murrelektronik 7000-12661-0000000 Bullet connector 1 pc(s)
Description
M12 socket 90° A-coded Cut&clamp connection 3-pin, 0.25 - 0.5mm², 4 - 5,1mm-M12 Bu. 90° A-coded Cut&clamp connection-Murrelektronik GmbH
