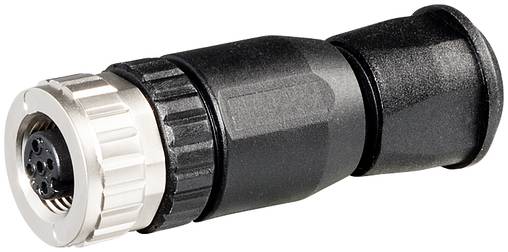

Murrelektronik 7000-12934-0000000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
No. of pins
4
Nominal voltage
250
Type
MSBL0-T
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Without LED; unshielded
- Type: Socket
- Page 2 Connection: Screw terminals
- M12 family design
- Protection class IP67
- Additional condition protection: Mounted; screwed
- Depth: 20
- Width: 20
- Gender: Female
- Coating contact: Gold-plated
- Mounting type: Screw thread
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Height: 57
- Min. Clamping range: 2.5
- Material contact: CuZn
- Coding: A
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 8
- Page 1 Connection: M12
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3/2
- Operating voltage DC max. 250
- Connection cross-section max.: 1.5
- Page 1 Cable outlet 0°
- Number of pins: 4
- Min. Plug-in cycles: 100
- Operating voltage AC max. 250
- Operating current: 0 A … 7.5 A.
- Cable outlet: Straight
- Max. Operating current: 7.5
- CULus 1
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: 4-pin, 0.14 - 1.5mm², 2.5 - 8mm
- Min. Operating voltage: 0
- Max. Operating voltage: 250
- Material short text MSBL0-T
- Supply voltage: 0 V – 250 V
- Connection cross-section min.: 0.14
- Clamping range: 2.5 mm … 8 mm
- Insulation resistance min.: 100
- Connection cross-section with cable-end sleeve min.: 0.14
- Connection cross-section with wire-end sleeve max. 1.5
- Connection cross-section with cable end sleeve AWG min.: 26
- Connection cross-section with wire-end sleeve AWG max. 16
- Type
MSBL0-T
- Product type
Sensor/actuator cable
- Connection side A
M12
- No. of pins
4
- Nominal voltage
250
- Contact material
CuZn, selectively gold-plated
- max. cross section
1.5 mm²
- Min. cross section
0.14 mm²
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-12934-0000000
- Content
1 pc(s)
- Depth
20 mm
- Height
57 mm
- Width
20 mm
- Connector version
straight
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762752 Murrelektronik 7000-12934-0000000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Datasheet 3762752 Murrelektronik 7000-12934-0000000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3762752 Murrelektronik 7000-12934-0000000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Description
M12 socket 0° A-coded Screw terminal connection 4-pin, 0.14 - 1.5mm², 2.5 - 8mm-M12 Bu. 0° A-coded Screw terminal connection-Murrelektronik GmbH
