Murrelektronik 7000-12962-0000000 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
No. of pins
5
Nominal voltage
60
Type
MSBL0-U
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Without LED; unshielded
- Type: Socket
- Page 2 Connection: Screw terminals
- M12 family design
- PBT casing
- CE 1
- Protection class IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Material locking: Copper alloy
- Type of connection: Screw terminals SK
- Gender: Female
- Coating contact: Gold-plated
- Mounting method: Plugged-in; screwed
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Min. Clamping range: 6
- Material contact: Copper alloy
- Coding: A
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 8
- Overvoltage category II
- Page 1 Connection: M12
- Sensor/actuator cable
- CURus: 1
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 60
- Connection cross-section max.: 0.75
- Page 1 Cable outlet 0°
- Number of pins: 5
- Operating current: 0 A … 4 A.
- Cable outlet: Straight
- Operating current per contact max. 4
- Max. Operating current: 4
- Operating current min.: 0
- Page 1 Number of poles: 5
- Sales text 2: 5-pin, max. 0.75mm², 6 - 8mm
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Width across: SW18
- Material short text MSBL0-U
- Supply voltage: 0 V – 60 V
- Clamping range: 6 mm … 8 mm
- Insulation resistance min.: 100
- Type
MSBL0-U
- Product type
Sensor/actuator cable
- Connection side A
M12
- No. of pins
5
- Nominal voltage
60
- Connection
Screw terminal
- Contact material
Copper alloy gold plated
- max. cross section
0.75 mm²
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-12962-0000000
- Content
1 pc(s)
- Connector version
straight
- Material
PBT
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763951 Murrelektronik 7000-12962-0000000 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
Datasheet 3763951 Murrelektronik 7000-12962-0000000 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763951 Murrelektronik 7000-12962-0000000 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
Description

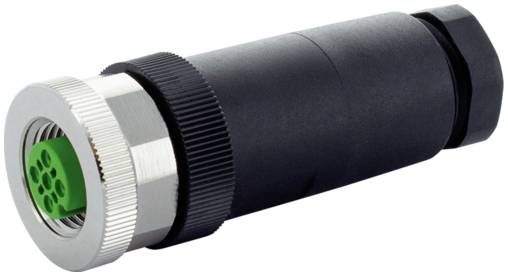

M12 socket 0° A-coded Screw terminal connection 5-pin, max. 0.75mm², 6 - 8mm alternative to 7000-12961-0000000-M12 Bu. 0° A-coded Screw terminal connection-Murrelektronik GmbH
