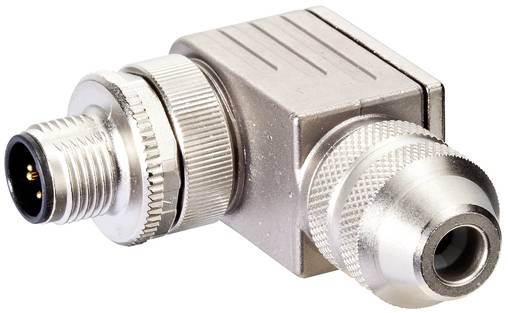

Murrelektronik 7000-13341-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
right angle
Total no. of pins
5
Connection
M12 plug
Screw terminal
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Shielded;without LED
- Type: Plug
- Page 2 Connection: Screw terminals
- Insulation class III
- M12 family design
- Zinc die-cast housing
- Protection class IP67
- Additional condition protection: Inserted;screwed
- Shielded: Yes
- Gender: Male
- Coating housing: Nickel-plated
- Coating contact: Gold-plated
- Mounting method: Plugged-in; screwed
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Min. Clamping range: 4
- Material contact: Brass
- Coding: A
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 6
- Overvoltage category II
- Page 1 Connection: M12
- Tightening torque: 0.6
- Pollution level 3
- Operating voltage DC max. 60
- Connection cross-section max.: 0.75
- Page 1 Cable outlet 90°
- Number of pins: 5
- Operating voltage AC max. 60
- Operating current: 0 A … 4 A.
- Cable outlet: Angled
- Operating current per contact max. 4
- Max. Operating current: 4
- Operating current min.: 0
- Page 1 Number of poles: 5
- Sales text 2: 5-pole, max. 0.75mm², 4 - 6mm, shielded
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 60 V
- Clamping range: 4 mm … 6 mm
- Type
M12 STECKER GEW.4..6 5pol.
- Product type
Bullet connector
- Connector type
right angle
- Total no. of pins
5
- Connection
M12 plug
Screw terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Contact material
Brass
- Manufacturer part #
7000-13341-0000000
- Number of pins
5
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
- Material
Zinc (die-cast)
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763986 Murrelektronik 7000-13341-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
Datasheet 3763986 Murrelektronik 7000-13341-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763986 Murrelektronik 7000-13341-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
Description
M12 St 90° A-coding Screw terminal connection 5-pin, max. 0.75mm², 4 - 6mm, shielded-M12 St 90° A-code. Screw terminal connection-Murrelektronik GmbH
