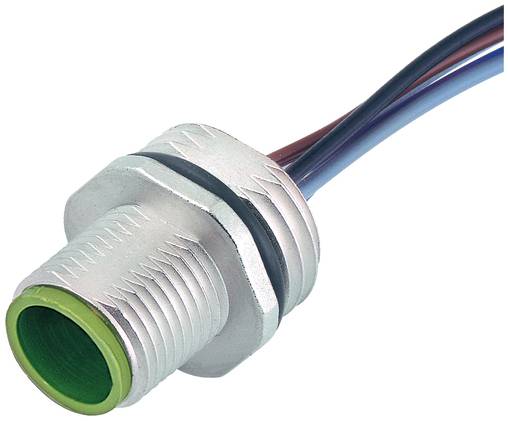

Murrelektronik 7000-13521-9020200 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
Connection side B
Cable, open end
No. of pins
5
Nominal voltage
125
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Type: Plug
- Page 2 Connection: Free wires
- Screw connection: Zinc die-cast
- Insulating material group: I
- M12 family design
- CE 1
- Protection class IP67
- UKCA 1
- Lock type: Screw thread
- Additional condition protection: Inserted;screwed
- Material locking: Die-cast zinc
- Gender: Male
- Coating contact: Gold-plated
- Coating locking: Matt nickel-plated
- Material: Die-cast zinc
- Mounting type: Screw thread
- Mounting thread M16 x 1.5
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- China RoHS e: 1
- Coding: A
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Use: DeviceNet;CANopen
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 125
- Number of pins: 5
- Operating voltage AC max. 125
- Protection class NEMA 6P;4;3
- Assignment: Fully occupied
- ATEX 0
- Operating current: 0 A … 4 A.
- Operating current per contact max. 4
- Max. Operating current: 4
- Operating current min.: 0
- Page 1 Number of poles: 5
- Sales text 2: PVC-strands 5x0.34 2m
- Min. Operating voltage: 0
- Max. Operating voltage: 125
- EAC 1
- UL 50E: Yes
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 125 V
- Type
MSAFV-U902_2.0
- Product type
Sensor/actuator cable
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
5
- Nominal voltage
125
- Contact material
Copper alloy gold plated
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
7000-13521-9020200
- Content
1 pc(s)
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763957 Murrelektronik 7000-13521-9020200 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
Datasheet 3763957 Murrelektronik 7000-13521-9020200 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763957 Murrelektronik 7000-13521-9020200 Sensor/actuator cable No. of pins (RJ): 5 1 pc(s)
Description
M12 PC. Flange a-coding VWM PVC-wires 5x0.34 2m-M12 pct flange A-cod. VWM-Murrelektronik GmbH
