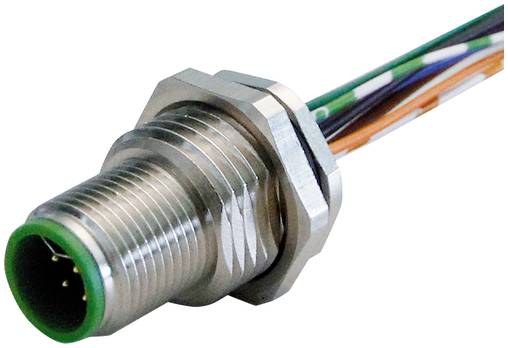

Murrelektronik 7000-15605-9420030 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
Connection side B
Cable, open end
No. of pins
8
Nominal voltage
50
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Type: Plug
- Page 2 Connection: Free wires
- Cable gland: Brass
- Insulating material group: I
- M12 family design
- CE 1
- Protection class IP67
- UKCA 1
- Lock type: Screw thread
- Additional condition protection: Inserted;screwed
- Material locking: Brass
- Gender: Male
- Coating housing: Nickel-plated
- Coating contact: Gold-plated
- Coating locking: Nickel-plated
- Material: Brass
- Mounting type: Screw thread
- Mounting thread M16 x 1.5
- China RoHS 50: 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding Y
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Usage: Ethernet
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 50
- Number of pins: 8
- Contour for corrugated hose: Without
- Operating voltage AC max. 50
- Protection class NEMA 6P;4;3
- ATEX 0
- Operating current: 0 A … 6 A.
- Max. Operating current: 6
- Operating current min.: 0
- Page 1 Number of poles: 8
- Sales text 2: PP-strand AWG20/26 0,3M
- Min. Operating voltage: 0
- Max. Operating voltage: 50
- Width across: SW19
- UL 50E: Yes
- Coating head: Nickel-plated
- Dimensioning surge voltage 0.8
- Supply voltage: 0 V – 50 V
- Operating current per data contact max.: 0.5
- Operating current per power contact max. 6
- PRODUCT STANDARD: EN IEC 61076-2-101 (M12)
- Type
MSYAFH-08D942_0.3
- Product type
Sensor/actuator cable
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
8
- Nominal voltage
50
- Contact material
Copper alloy gold plated
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
7000-15605-9420030
- Content
1 pc(s)
- Cable use
Industrial ethernet
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3766030 Murrelektronik 7000-15605-9420030 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
Datasheet 3766030 Murrelektronik 7000-15605-9420030 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3766030 Murrelektronik 7000-15605-9420030 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
Description
M12 pc. Flange Y-coding HWM PP wires AWG20/26 0, 3M-M12 St. flange Y-coding HWM-Murrelektronik GmbH
