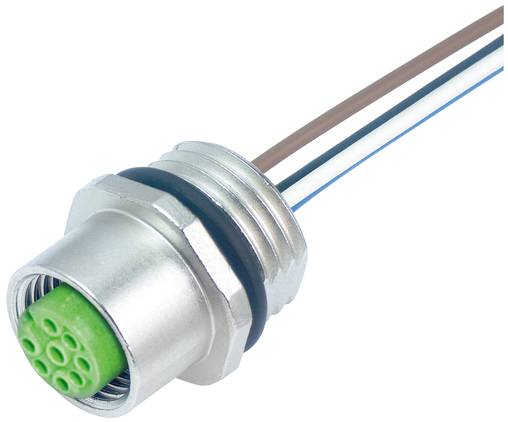

Murrelektronik 7000-17181-9730150 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
Connection side B
Cable, open end
No. of pins
8
Nominal voltage
30
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Type: Socket
- Page 2 Connection: Free wires
- Screw connection: Zinc die-cast
- Insulating material group: I
- M12 family design
- Zinc die-cast housing
- CE 1
- Protection class IP67
- UKCA 1
- Lock type: Screw thread
- Additional condition protection: Mounted; screwed
- Seal: FKM
- Gender: Female
- Coating housing: Nickel-plated
- Coating contact: Gold-plated
- Material: Die-cast zinc
- Mounting type: Screw thread
- Mounting thread M16 x 1.5
- China RoHS 50: 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: A
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Sensor/actuator cable
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 30
- Number of pins: 8
- Contour for corrugated hose: Without
- Operating voltage AC max. 30
- Protection class NEMA 6P;4;3
- Operating current: 0 A … 2 A.
- Operating current per contact max. 2
- Max. Operating current: 2
- Operating current min.: 0
- Page 1 Number of poles: 8
- Sales text 2: PUR-wires 8x0.25 1.5m
- Min. Operating voltage: 0
- Max. Operating voltage: 30
- UL 50E: Yes
- Dimensioning surge voltage 0.8
- Supply voltage: 0 V – 30 V
- PRODUCT STANDARD: EN IEC 61076-2-101 (M12)
- Type
MSBFV-08D973_1.5
- Product type
Sensor/actuator cable
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
8
- Nominal voltage
30
- Contact material
Copper alloy gold plated
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
7000-17181-9730150
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763969 Murrelektronik 7000-17181-9730150 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
Datasheet 3763969 Murrelektronik 7000-17181-9730150 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763969 Murrelektronik 7000-17181-9730150 Sensor/actuator cable No. of pins (RJ): 8 1 pc(s)
Description
M12 socket Flange A-coded VWM PUR-wires 8x0.25 1,5m-M12 Bu. Flange A-coded VWM-Murrelektronik GmbH
