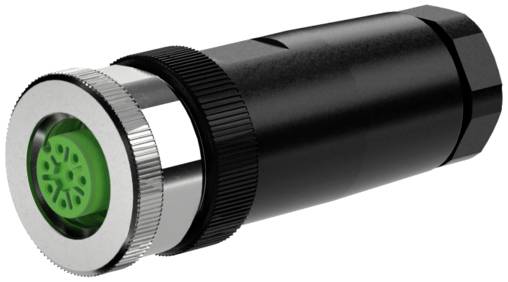

Murrelektronik 7000-17321-0000000 Bullet connector straight Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
straight
Total no. of pins
8
Connection
M12 socket
Screw terminal
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Without LED; unshielded
- Type: Socket
- Page 2 Connection: Screw terminals
- Cable gland: Brass
- Insulation class III
- M12 family design
- PBT casing
- CE 1
- Protection class IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Gender: Female
- Material contact carrier: PA
- Mounting type: Plug-in; screwed; vibration proof
- China RoHS 50: 1
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Min. Clamping range: 6
- Material contact: Bronze
- Coding: A
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 8
- Overvoltage category II
- Page 1 Connection: M12
- CURus: 1
- Tightening torque: 0.4
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 30
- Connection cross-section max.: 0.5
- Page 1 Cable outlet 0°
- Number of pins: 8
- Operating voltage AC max. 30
- Operating current: 0 A … 2 A.
- Cable outlet: Straight
- Operating current per contact max. 2
- Max. Operating current: 2
- Operating current min.: 0
- Page 1 Number of poles: 8
- Sales text 2: 8-pin, max. 0.5mm², 6 - 8mm
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Supply voltage: 0 V – 60 V
- Clamping range: 6 mm … 8 mm
- Type
MSBL0-D6..8mm 8pol.selbstanschließb.
- Product type
Bullet connector
- Connector type
straight
- Total no. of pins
8
- Connection
M12 socket
Screw terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Contact material
Bronze
- Manufacturer part #
7000-17321-0000000
- Number of pins
8
- max. cross section
0.5 mm²
- Cross-section range
0.5 mm² (max)
- Material
PBT
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3764017 Murrelektronik 7000-17321-0000000 Bullet connector straight Total number of pins: 8 1 pc(s)
Datasheet 3764017 Murrelektronik 7000-17321-0000000 Bullet connector straight Total number of pins: 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3764017 Murrelektronik 7000-17321-0000000 Bullet connector straight Total number of pins: 8 1 pc(s)
Description
M12 socket 0° A-coded Screw terminal connection 8-pin, max. 0.5mm², 6 - 8mm-M12 Bu. 0° A-coded Screw terminal connection-Murrelektronik GmbH
