Murrelektronik 7000-44033-8030300 Sensor/actuator cable No. of pins (RJ): 4 50 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
Connection side B
M12
No. of pins
4
Nominal voltage
30
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Shielded;without LED
- Type: Plug - socket
- Page 2 Connection: M12
- Insulating material group: I
- M12 family design
- CE 1
- PROTECTION CLASS IP65;IP66K;IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Page 2 Cable outlet 90°
- Gender: Female
- Mounting type: Plug-in; screwed; vibration proof
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- China RoHS e: 1
- Coding: B
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Tightening torque: 0.6
- Operating voltage DC 30
- Thread M12 x 1
- Pollution level 3
- Operating voltage AC:30
- Operating voltage DC max. 60
- Page 1 Cable outlet 0°
- Number of pins: 4
- Operating voltage AC max. 60
- ATEX 0
- Operating current: 0 A … 4 A.
- Cable outlet: Straight
- Operating current per contact max. 4
- Max. Operating current: 4
- CCSAus: 1
- CULus 1
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: PUR AWG24+22 shielded VT UL/CSA+tow 3M
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Page 2 Number of poles: 4
- EAC 1
- MATERIAL SHORT TEXT: MSBDL0-BA-T803_3.0
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 60 V
- PRODUCT STANDARD: EN IEC 61076-2-101 (M12)
- Type
MSBDL0-BA-T803_3.0
- Product type
Sensor/actuator cable
- Connection side A
M12
- Connection side B
M12
- No. of pins
4
- Nominal voltage
30
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-44033-8030300
- Content
50 pc(s)
- Connector version
straight
- Protection class
IP65
IP66
IP67
Documents & Downloads
Datasheet
Datasheet 3763629 Murrelektronik 7000-44033-8030300 Sensor/actuator cable No. of pins (RJ): 4 50 pc(s)
Datasheet 3763629 Murrelektronik 7000-44033-8030300 Sensor/actuator cable No. of pins (RJ): 4 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3763629 Murrelektronik 7000-44033-8030300 Sensor/actuator cable No. of pins (RJ): 4 50 pc(s)
Description

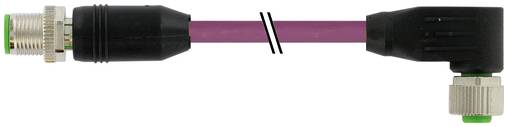

M12 PC. 0° / M12 socket 90° B-coded. Shielded PUR AWG24+22 shielded VT UL/CSA+tow 3M-M12 St. 0° / M12 Bu. 90° B-coded. Shielded-Murrelektronik GmbH
