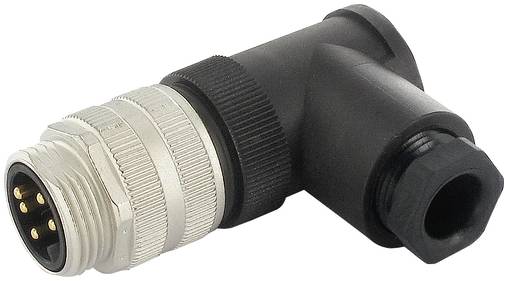

Murrelektronik 7000-78151-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
right angle
Total no. of pins
5
Connection
7/8"
Screw terminal
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Unshielded
- Type: Plug
- Page 2 Connection: Screw terminals
- Insulation class III
- Family design 7/8"
- PUR housing
- Protection class IP67
- Additional condition protection: Inserted;screwed
- Shielded: No.
- Gender: Male
- Coating contact: Gold-plated
- Mounting type: Plug-in; screwed; vibration proof
- Min. Operating temperature: -25
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Min. Clamping range: 8
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 10
- Over voltage category III
- Page 1 Connection 7/8"
- Usage: Power
- CURus: 1
- Tightening torque: 1.5
- Thread 7/8"
- Pollution level 3
- Operating voltage AC:600
- Operating voltage DC max. 300
- Connection cross-section max.: 2.5
- Page 1 Cable outlet 90°
- Number of pins: 5
- Min. Plug-in cycles: 100
- Operating voltage AC max. 300
- Operating current: 0 A … 9 A.
- Cable outlet: Angled
- Operating current per contact max. 9
- Max. Operating current: 9
- Operating current min.: 0
- Page 1 Number of poles: 5
- Sales text 2: 5-pole, max. 2.5mm², 8 - 10mm
- Min. Operating voltage: 0
- Max. Operating voltage: 300
- Material short text: MSCCL0-T (8-10mm cable-Ø)
- Supply voltage: 0 V – 300 V
- Clamping range: 8 mm … 10 mm
- Constant resistance max.: 5
- Connection cross-section without wire-end sleeve AWG max.: 14
- Type
MSCCL0-T (8-10mm Kabel-Ø)
- Product type
Bullet connector
- Connector type
right angle
- Total no. of pins
5
- Connection
7/8"
Screw terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-25 °C
- Manufacturer part #
7000-78151-0000000
- Number of pins
5
- max. cross section
2.5 mm²
- Cross-section range
2.5 mm² (max)
- Material
PUR
- Protection class
IP67
Documents & Downloads
Datasheet
Datasheet 3764564 Murrelektronik 7000-78151-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
Datasheet 3764564 Murrelektronik 7000-78151-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3764564 Murrelektronik 7000-78151-0000000 Bullet connector right angle Total number of pins: 5 1 pc(s)
Description
"7/8"" St. 90° Screw terminal connection" 5-pin, max. 2.5mm2, 8 - 10mm-"7/8" St. 90° Screw terminal connection"-Murrelektronik GmbH
