Murrelektronik 7000-88021-2300015 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M8
Connection side B
M8
No. of pins
3
Nominal voltage
60
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Without LED; unshielded
- Type: Plug - socket
- Page 2 Connection: M8
- Insulating material group: I
- M8 family design
- PUR housing
- CE 1
- PROTECTION CLASS IP65;IP66K;IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Material locking: Die-cast zinc
- Seal: FKM
- Page 2 Cable outlet 90°
- Gender: Female
- Coating contact: Gold-plated
- Coating locking: Matt nickel-plated
- Material PUR
- Mounting type: Plug-in; screwed; vibration proof
- China RoHS 50: 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: A
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M8
- Sensor/actuator cable
- Tightening torque: 0.4
- Thread M8 x 1
- Pollution level 3
- Operating voltage DC max. 60
- Page 1 Cable outlet 0°
- Number of poles: 3
- Operating voltage AC max. 50
- Operating current: 0 A … 4 A.
- Cable outlet: Straight
- Operating current per contact max. 4
- Max. Operating current: 4
- CCSAus: 1
- CULus 1
- Operating current min.: 0
- Page 1 Number of poles: 3
- Sales text 2: PUR 3x0.25 gr UL/CSA+tuk. 0.15m
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Page 2 Number of poles: 3
- MATERIAL SHORT TEXT: MSGL0-H-R230_0.15
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 60 V
- Suitable for corrugated hose: 6.5
- PRODUCT STANDARD: EN / IEC 61076-2-104 (M8)
- Type
MSGL0-H-R230_0.15
- Product type
Sensor/actuator cable
- Connection side A
M8
- Connection side B
M8
- No. of pins
3
- Nominal voltage
60
- Contact material
Copper alloy gold plated
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-88021-2300015
- Content
1 pc(s)
- Connector version
straight
- Material
PUR
- Protection class
IP65
IP66
IP67
Documents & Downloads
Datasheet
Datasheet 3764602 Murrelektronik 7000-88021-2300015 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Datasheet 3764602 Murrelektronik 7000-88021-2300015 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3764602 Murrelektronik 7000-88021-2300015 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Description

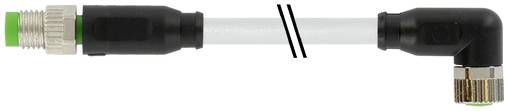

M8 PC. 0° / M8 socket 90° A-coded PUR 3x0.25 g UL/CSA+towing. 0.15m-M8 St. 0° / M8 Bu. 90° A coded Murrelektronik GmbH
