Murrelektronik 7000-88421-6330200 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side B
M8
No. of pins
4
Nominal voltage
24
Type
MSTL3-H-P633_2.0
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Material: PUR sheathing
- Product family: Industry Standard
- Functions: LED; unshielded
- Type: Socket - plug
- Page 2 Connection: M8
- Insulating material group: I
- Family type: C type solenoid connector
- Housing: Plastic
- CE 1
- Protection class IP65;IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Material locking: Die-cast zinc
- Colour of housing: Black
- Page 2 Cable outlet 0°
- Coating locking: Matt nickel-plated
- Material PBT
- Mounting method: Plugged-in; screwed
- Min. Operating temperature: -25
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: Type C (8 mm)
- Sensor/actuator cable
- Interference suppressor: Diode
- Tightening torque: 0.4
- Operating voltage DC 24
- Thread: M2.5
- Operating voltage min. DC: 18
- Pollution level 3
- China RoHS 25: 1
- Operating voltage AC:24
- Operating voltage DC max. 30
- Page 1 Cable outlet 90°
- Number of pins: 4
- Operating voltage AC max. 28.8
- Operating current: 0 A … 4 A.
- Operating current per contact max. 4
- Max. Operating current: 4
- CCSAus: 1
- Operating current min.: 0
- Page 1 Number of poles: 3
- Operating voltage AC min.: 19.2
- Sales text 2: PUR 3x0.34 SW UL/CSA+tuk. 2 m
- Min. Operating voltage: 18
- Max. Operating voltage: 30
- Page 2 Number of poles: 2
- MATERIAL SHORT TEXT: MSTL3-H-P633_2.0
- Max. Switch-off peak voltage: 55
- Dimensioning surge voltage 0.8
- Supply voltage: 18 V – 30 V
- Max. Fall delay time: 20
- Suitable for corrugated hose: 6.5
- Type
MSTL3-H-P633_2.0
- Product type
Sensor/actuator cable
- Connection side B
M8
- No. of pins
4
- Jacket material
PUR
- Nominal voltage
24
- Factory colour
Black
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-88421-6330200
- Content
1 pc(s)
- Material
Plastic
- Protection class
IP65
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3764673 Murrelektronik 7000-88421-6330200 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Datasheet 3764673 Murrelektronik 7000-88421-6330200 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3764673 Murrelektronik 7000-88421-6330200 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Description

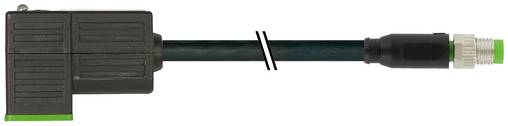

M8 PC. 0° A-coded / MSUD Valve plug C-8mm CL.BF PUR 3x0.34 SW UL/CSA+tuk. 2m-M8 PC. 0° A-coded / MSUD Valve plug C-8mm kl.BF-Murrelektronik GmbH
