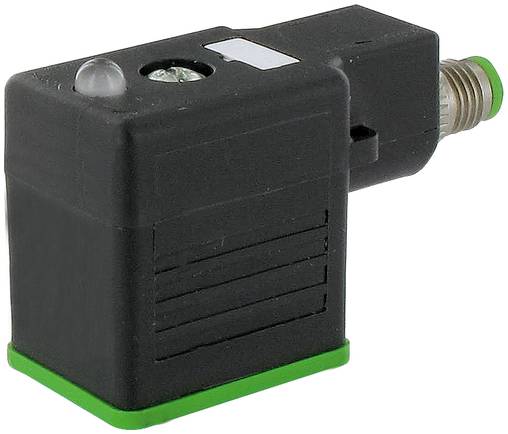

Murrelektronik 7000-88935-0000000 Sensor/actuator adapter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator adapter
Nominal voltage
24
Type
MSNL3-I
Min. temperature
-25 °C
Max. temperature
85 °C
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: LED; unshielded
- Page 2 Connection: M8, connector to the rear
- Protection class IP67
- Additional condition protection: Inserted;screwed
- Mounting thread M3 / M8
- Min. Operating temperature: -25
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: Design B (10 mm)
- Interference suppressor: Diode
- Tightening torque: 0.4
- Operating voltage DC 24
- Operating voltage min. DC: 18
- Operating voltage AC:24
- Operating voltage DC max. 30
- Operating voltage AC max. 28.8
- Operating current: 0 A … 4 A.
- Operating current per contact max. 4
- Max. Operating current: 4
- CCSAus: 1
- Operating current min.: 0
- Max. Power consumption: 15
- Page 1 Number of poles: 3
- Operating voltage AC min.: 19.2
- Sales text 2: LED+protective circuit 24 V AC/DC
- Min. Operating voltage: 18
- Max. Operating voltage: 30
- Page 2 Number of poles: 3
- Material short text MSNL3-I
- Max. Switch-off peak voltage: 55
- Dimensioning surge voltage 0.8
- Supply voltage: 18 V – 30 V
- Type
MSNL3-I
- Product type
Sensor/actuator adapter
- Nominal voltage
24
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-88935-0000000
- Content
1 pc(s)
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3764778 Murrelektronik 7000-88935-0000000 Sensor/actuator adapter 1 pc(s)
Datasheet 3764778 Murrelektronik 7000-88935-0000000 Sensor/actuator adapter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3764778 Murrelektronik 7000-88935-0000000 Sensor/actuator adapter 1 pc(s)
Description
Adapter M8 pc rear A-code/MSUD valve plug B-10mm LED + protective circuit 24 V AC/DC-Adapter M8 St. back A-coding/MSUD Valve plug B-10mm-Murrelektronik GmbH
