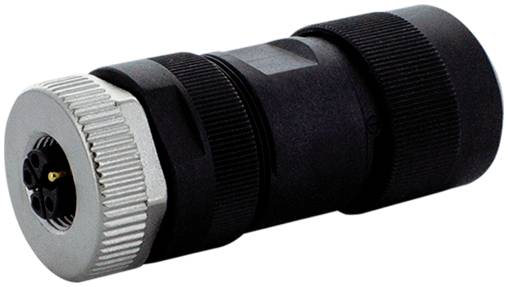

Murrelektronik 7000-P4611-0000000 Bullet connector straight Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
straight
Total no. of pins
5
Connection
M12 socket
Screw terminal
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Unshielded
- Type: Socket
- Page 2 Connection: Screw terminals
- Insulation material group II.
- Family-design: M12P
- PA casing
- CE 1
- Protection class IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Type of connection: Screw terminals SK
- Gender: Female
- Coating contact: Gold-plated
- Material contact carrier: PA
- Mounting type: Screw thread
- Mounting thread M12 x 1
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Min. Clamping range: 8
- Material contact: Copper alloy
- Coding L
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Max. Clamping range: 13
- Over voltage category III
- Page 1 Connection: M12
- Usage: Power
- CURus: 1
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 63
- Page 1 Cable outlet 0°
- Number of pins: 5
- Min. Plug-in cycles: 100
- Operating voltage AC max. 63
- Cable outlet: Straight
- Operating current per contact max. 16
- Max. Operating current: 16
- AWG number max.: 14
- Operating current min.: 0
- Page 1 Number of poles: 5
- Sales text 2: 5-pole, max. 2.5mm², 8 - 13mm
- Min. Operating voltage: 0
- Max. Operating voltage: 63
- Material short text: MSWBL-U-SK max. 2.5mm²
- Dimensioning surge voltage 1.5
- Clamping range: 8 mm … 13 mm
- Connection cross-section with wire-end sleeve max. 1.5
- Connection cross-section with wire-end sleeve AWG max. 16
- Connection cross-section without wire-end sleeve AWG max.: 14
- Connection cross-section without wire-end sleeve max.: 2.5
- Type
MSWBL-U-SK max. 2.5mm²
- Product type
Bullet connector
- Connector type
straight
- Total no. of pins
5
- Connection
M12 socket
Screw terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Contact material
Copper alloy
- Manufacturer part #
7000-P4611-0000000
- Number of pins
5
- Material
PA
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3764922 Murrelektronik 7000-P4611-0000000 Bullet connector straight Total number of pins: 5 1 pc(s)
Datasheet 3764922 Murrelektronik 7000-P4611-0000000 Bullet connector straight Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3764922 Murrelektronik 7000-P4611-0000000 Bullet connector straight Total number of pins: 5 1 pc(s)
Description
M12 Power socket 0° L-Code Screw terminal connection 5-pin, max. 2.5mm², 8 - 13mm-M12 Power Bu. 0° L-Code Screw terminal connection-Murrelektronik GmbH
