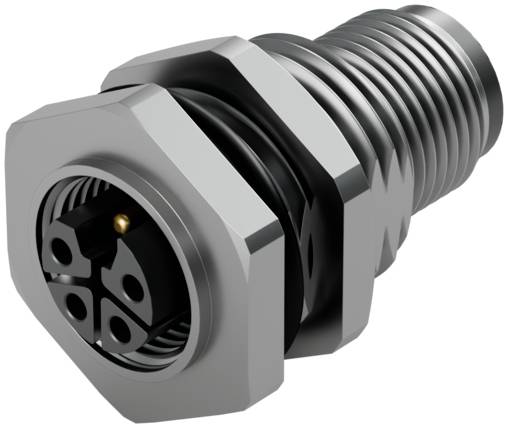

Murrelektronik 7000-P4911-0000000 Sensor/actuator receptacle No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator receptacle
Connection side A
M12
Connection side B
M12
No. of pins
5
Nominal voltage
63
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Shielded
- Type: Socket - plug
- Page 2 Connection: M12
- Insulating material group: I
- Family-design: M12P
- Casing: Brass
- CE 1
- PROTECTION CLASS IP65;IP67;IP68
- UKCA 1
- Additional condition protection: Inserted;screwed
- Shielded: Yes
- Coating housing: Nickel-plated
- Material contact carrier: PUR
- Mounting type: Plug-in; screwed; vibration proof
- Mounting thread M12 x 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- China RoHS e: 1
- Coding L
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Usage: Power
- Tightening torque: 0.6
- Pollution level 3
- Operating voltage DC max. 63
- Number of pins: 5
- Operating current per contact max. 16
- Max. Operating current: 16
- Operating current min.: 0
- Page 1 Number of poles: 5
- Min. Operating voltage: 0
- Max. Operating voltage: 63
- Page 2 Number of poles: 5
- MATERIAL SHORT TEXT: MSWBLSV-WAL-U.
- Dimensioning surge voltage 1.5
- Product standard EN IEC 61076-2-111
- Type
MSWBLSV-WAL-U
- Product type
Sensor/actuator receptacle
- Connection side A
M12
- Connection side B
M12
- No. of pins
5
- Nominal voltage
63
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-P4911-0000000
- Content
1 pc(s)
- Material
Brass
- Protection class
IP65
IP67
IP68
Documents & Downloads
Datasheet
Datasheet 3766083 Murrelektronik 7000-P4911-0000000 Sensor/actuator receptacle No. of pins (RJ): 5 1 pc(s)
Datasheet 3766083 Murrelektronik 7000-P4911-0000000 Sensor/actuator receptacle No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3766083 Murrelektronik 7000-P4911-0000000 Sensor/actuator receptacle No. of pins (RJ): 5 1 pc(s)
Description
M12 Power control cabinet grommet 5pin. L coded M12 Power 5-pin switchboard bushing L-coding Murrelektronik GmbH
