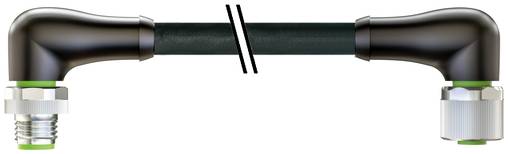

Murrelektronik 7000-P6271-P060300 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
Connection side B
M12
No. of pins
4
Nominal voltage
600
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Without LED; unshielded
- Type: Plug - socket
- Page 2 Connection: M12
- Cable gland: Brass
- Insulating material group: I
- Family-design: M12P
- PUR housing
- CE 1
- PROTECTION CLASS IP65;IP67;IP69K
- UKCA 1
- Additional condition protection: Inserted;screwed
- Seal: FKM
- Page 2 Cable outlet 90°
- Gender: Female
- Coating contact: Gold-plated
- Mounting method: Plugged-in; screwed
- China RoHS 50: 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: S
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Usage: Power
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Page 1 Cable outlet 90°
- Number of pins: 4
- Min. Plug-in cycles: 100
- Operating voltage AC max. 600
- ATEX 0
- Operating current: 0 A … 12 A.
- Cable outlet: Angled
- Operating current per contact max. 12
- Max. Operating current: 12
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: PUR 4x1.5 SW UL/CSA+towing. 3M
- Min. Operating voltage: 0
- Max. Operating voltage: 600
- Width across: SW17
- Page 2 Number of poles: 4
- EAC 1
- MATERIAL SHORT TEXT: MSWDSL0-WCS-TP06_3.0
- Dimensioning surge voltage 6
- Supply voltage: 0 V – 600 V
- Suitable for corrugated hose: 12
- Product standard EN IEC 61076-2-111
- UL Power 0
- UL Power E492831:1
- Type
MSWDSL0-WCS-TP06_3.0
- Product type
Sensor/actuator cable
- Connection side A
M12
- Connection side B
M12
- No. of pins
4
- Nominal voltage
600
- Contact material
Copper alloy gold plated
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-P6271-P060300
- Content
1 pc(s)
- Connector version
angled
- Material
PUR
- Protection class
IP65
IP67
Documents & Downloads
Datasheet
Datasheet 3764989 Murrelektronik 7000-P6271-P060300 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Datasheet 3764989 Murrelektronik 7000-P6271-P060300 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3764989 Murrelektronik 7000-P6271-P060300 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Description
M12 Power PC. 90° / Bu. 90° S-Code PUR 4x1.5 SW UL/CSA+towing. 3M-M12 Power 90° / Bu. 90° S-Code-Murrelektronik GmbH
