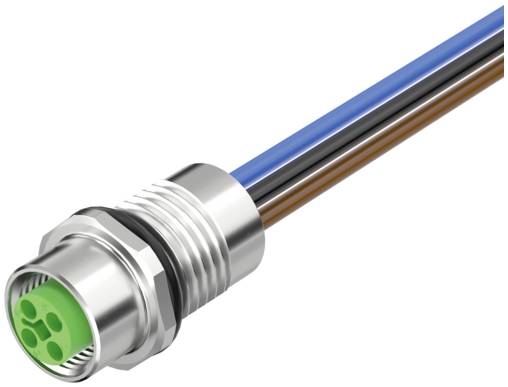

Murrelektronik 7000-P7291-9440020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12
Connection side B
Cable, open end
No. of pins
4
Nominal voltage
63
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Type: Socket
- Page 2 Connection: Free wires
- Insulating material group: I
- Family-design: M12P
- Casing: Brass
- CE 1
- PROTECTION CLASS IP65;IP67;IP69K
- UKCA 1
- Additional condition protection: Mounted; screwed
- Material locking: Brass
- Seal: FKM
- Coating housing: Nickel-plated
- Coating contact: Gold-plated
- Coating locking: Nickel-plated
- Mounting method: Plugged-in; screwed
- Mounting thread M16 x 1.5
- China RoHS 50: 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: T
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Usage: Power
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 63
- Number of pins: 4
- Contour for corrugated hose: Without
- Protection class NEMA 6P;4;3
- Operating current: 0 A … 12 A.
- Operating current per contact max. 12
- Max. Operating current: 12
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: PUR-strands 4x1.5 0.2m
- Min. Operating voltage: 0
- Max. Operating voltage: 63
- Width across: SW17
- Material short text: MSWBTFV-T944_0.2
- UL 50E: Yes
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 63 V
- Product standard EN IEC 61076-2-111
- Type
MSWBTFV-T944_0.2
- Product type
Sensor/actuator cable
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
4
- Nominal voltage
63
- Contact material
Copper alloy gold plated
- Min. temperature
-30 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-P7291-9440020
- Content
1 pc(s)
- Material
Brass
- Protection class
IP65
IP67
Documents & Downloads
Datasheet
Datasheet 3766082 Murrelektronik 7000-P7291-9440020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Datasheet 3766082 Murrelektronik 7000-P7291-9440020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3766082 Murrelektronik 7000-P7291-9440020 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Description
M12 Power socket Flange T-coded VWM PUR-strands 4x1.5 0.2m-M12 Power Bu. Flange T-coded VWM-Murrelektronik GmbH
