Murrelektronik 7000-P8232-P361000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
MQ15 socket, straight
Connection side B
Cable, open end
No. of pins
4
Nominal voltage
600
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- MQ Quick Connect Product Family
- Functions: Unshielded
- Type: Socket
- Page 2 Connection: Free cable end
- Insulating material group: I
- Family design: Open cable ends
- PUR housing
- CE 1
- Protection class IP65;IP67
- UKCA 1
- Bayonet lock
- Additional conditions Protection class: Locked;inserted
- Material locking: POM
- Coating contact: Silver-plated
- Material contact carrier: PA
- Mounting method: Locked;plugged
- China RoHS 50: 1
- Min. Operating temperature: -25
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: Type 3
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: MQ15
- Application: Motors;Power
- Pollution level 3
- Page 1 Cable outlet 90°
- Number of pins: 4
- Operating voltage AC max. 600
- Assignment: Partly occupied
- ATEX 0
- Operating current: 0 A … 16 A.
- Cable outlet: Angled
- Operating current per contact max. 16
- Max. Operating current: 16
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: PUR 4x2.5 SW UL/CSA+towing. 10m
- Min. Operating voltage: 0
- Max. Operating voltage: 600
- EAC 1
- Material short text: MSWFQ3L0-6p7P36_10.0-270°
- Dimensioning surge voltage 6
- Supply voltage: 0 V – 600 V
- Suitable for corrugated hose: 18
- Product standard EN / IEC 61076-2-116
- UL Power 1
- Stripping length 100:1
- Type
MSWFQ3L0-6p7P36_10.0-270°
- Product type
Sensor/actuator cable
- Connection side A
MQ15 socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Nominal voltage
600
- Contact material
Copper alloy silver plated
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Seal type
Bayonet
- Manufacturer part #
7000-P8232-P361000
- Content
1 pc(s)
- Connector version
angled
- Material
PUR
- Protection class
IP65
IP67
Documents & Downloads
Datasheet
Datasheet 3765323 Murrelektronik 7000-P8232-P361000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Datasheet 3765323 Murrelektronik 7000-P8232-P361000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3765323 Murrelektronik 7000-P8232-P361000 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Description

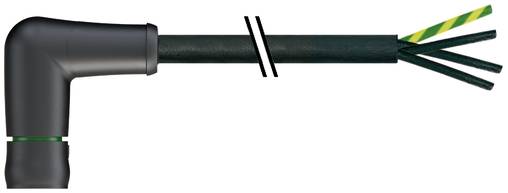

MQ15 Bu. 270° free cable end 600V AC Type 3 PUR 4x2.5 SW UL/CSA+towing. 10m-MQ15 BU. 270° free cable end 600V AC Type 3-Murrelektronik GmbH
