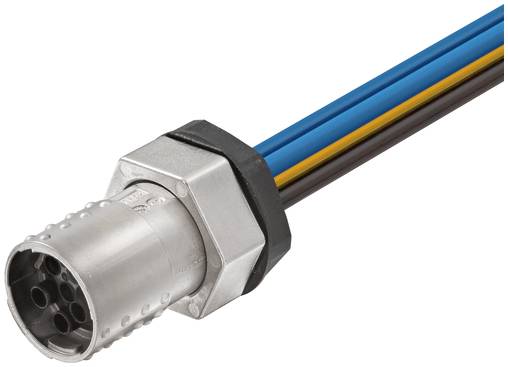

Murrelektronik 7000-P8291-P820100 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
MQ15 socket, straight
Connection side B
Cable, open end
No. of pins
4
Nominal voltage
600
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- MQ Quick Connect Product Family
- Type: Socket
- Page 2 Connection: Free wires
- Insulating material group: I
- Family design: MQ15
- Casing: Brass
- CE 1
- Protection class IP67
- UKCA 1
- Bayonet lock
- Additional condition protection: Inserted;screwed
- Coating housing: Nickel-plated
- Coating contact: Silver-plated
- Material contact carrier: PA
- Mounting method: Plugged-in; screwed
- Mounting thread M20 x 1.5
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: Type 3
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 70
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: MQ15
- Application: Motors;Power
- Tightening torque: 6
- Pollution level 3
- Number of pins: 4
- Min. Plug-in cycles: 500
- Operating voltage AC max. 600
- Assignment: Fully occupied
- Operating current: 0 A … 16 A.
- Operating current per contact max. 16
- Max. Operating current: 16
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: Strands PVC 4x2.5 1m
- Min. Operating voltage: 0
- Max. Operating voltage: 600
- Width across: SW22
- Material short text: MSWBQ3FV-P82_1.0
- Dimensioning surge voltage 6
- Supply voltage: 0 V – 600 V
- Product standard EN / IEC 61076-2-116
- UL Power E492831:1
- Type
MSWBQ3FV-P82_1.0
- Product type
Sensor/actuator cable
- Connection side A
MQ15 socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Nominal voltage
600
- Contact material
Copper alloy silver plated
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Seal type
Bayonet
- Manufacturer part #
7000-P8291-P820100
- Content
1 pc(s)
- Material
Brass
- Protection class
IP67
Documents & Downloads
Datasheet
Datasheet 3765388 Murrelektronik 7000-P8291-P820100 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Datasheet 3765388 Murrelektronik 7000-P8291-P820100 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3765388 Murrelektronik 7000-P8291-P820100 Sensor/actuator cable No. of pins (RJ): 4 1 pc(s)
Description
MQ15-X-Power flange socket shielded VM straight wires PVC 4x2.5 1m-MQ15-X-Power flange socket shielded VM straight-Murreelectronic GmbH
