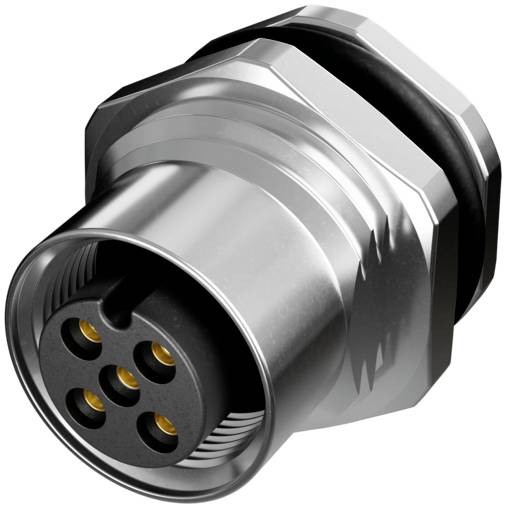

Murrelektronik 7000-R2214-11A2400 Sensor/actuator connector No. of pins (RJ): 4 10 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connection side A
M12
No. of pins
4
Nominal voltage
250
Type
MSBFHL0-T11A-PCB
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Type: Socket
- Page 2 Connection: PCB PIN
- M12 family design
- Copper-alloy casing
- CE 1
- Protection class IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Material locking: Copper alloy
- Coating contact: Gold-plated
- Coating locking: Nickel-plated
- Material contact carrier: PA66
- Mounting type: Plug-in; screwed; vibration proof
- Mounting thread M12 x 1
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- Coding: A
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- CURus: 1
- Connection information: THT solder connection
- Tightening torque: 0.6
- Operating voltage DC 250
- Pollution level 3
- Operating voltage AC:250
- Number of pins: 4
- Operating current: 0 A … 4 A.
- Operating current per contact max. 4
- Max. Operating current: 4
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: 4-pin, PCB pin
- Min. Operating voltage: 0
- Max. Operating voltage: 250
- Width across: SW17
- MATERIAL SHORT TEXT: MSBFHL0-T11A-PCB
- Supply voltage: 0 V – 250 V
- Insulation resistance min.: 100
- Type
MSBFHL0-T11A-PCB
- Product type
Sensor/actuator connector
- Connection side A
M12
- No. of pins
4
- Nominal voltage
250
- Contact material
Copper alloy gold plated
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-R2214-11A2400
- Content
10 pc(s)
- Material
Copper alloy
- Protection class
IP67
Documents & Downloads
Datasheet
Datasheet 3763648 Murrelektronik 7000-R2214-11A2400 Sensor/actuator connector No. of pins (RJ): 4 10 pc(s)
Datasheet 3763648 Murrelektronik 7000-R2214-11A2400 Sensor/actuator connector No. of pins (RJ): 4 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3763648 Murrelektronik 7000-R2214-11A2400 Sensor/actuator connector No. of pins (RJ): 4 10 pc(s)
Description
M12 socket Flange 0° A- cood. HWM 4-pin, PCB Pin-M12 socket Flange 0° A- cood. HWM-Murrelektronik GmbH
