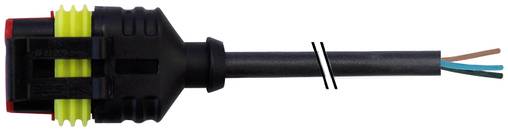

Murrelektronik 7072-73081-5130500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
Superseal plug
Connection side B
Cable, open end
No. of pins
3
Nominal voltage
24
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Functions: Without components; unshielded
- Type: Plug
- Page 2 Connection: Free cable end
- Family-design: SUPERSEAL
- Housing: Plastic
- CE 1
- Protection class IP67;IP69K
- UKCA 1
- Snap-lock latch
- Additional conditions Protection class: Locked;inserted
- Industries: Mobile Applications
- Sealing: Silicone
- Colour of housing: Black
- Contact coating: Tin-plated
- Mounting type: Plugged
- Min. Operating temperature: -40
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- China RoHS e: 1
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 125
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: Super Seal MSC1.5
- Pollution level 3
- Operating voltage DC max. 24
- Page 1 Cable outlet 0°
- Number of poles: 3
- ATEX 0
- Operating current: 0 A … 8 A.
- Operating current per contact max. 8
- Max. Operating current: 8
- Operating current min.: 0
- Page 1 Number of poles: 3
- Sales text 2: PUR 3x0.75 bk 5m
- Min. Operating voltage: 0
- Max. Operating voltage: 24
- MATERIAL SHORT TEXT: MSTGL0-Q513_5.0-S72
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 24 V
- Suitable for corrugated hose: 11
- Type
MSTGL0-Q513_5.0-S72
- Product type
Sensor/actuator cable
- Connection side A
Superseal plug
- Connection side B
Cable, open end
- No. of pins
3
- Nominal voltage
24
- Factory colour
Black
- Contact material
Copper alloy tin plated
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Seal type
Snap-in
- Manufacturer part #
7072-73081-5130500
- Content
1 pc(s)
- Material
Plastic
- Protection class
IP67
Documents & Downloads
Datasheet
Datasheet 3765391 Murrelektronik 7072-73081-5130500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Datasheet 3765391 Murrelektronik 7072-73081-5130500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3765391 Murrelektronik 7072-73081-5130500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Description
MSC Superseal socket Cable-end PUR 3x0.75 SW 5m-MSC Superseal BU. Free cable-end-Murrelektronik GmbH
