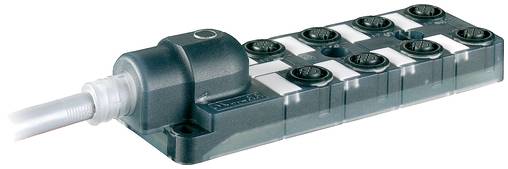

Murrelektronik 8000-88410-3621500 Sensor/actuator contact splitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator contact splitter
Nominal voltage
24
Type
MVP12N-AN8V362 15.0M
Min. temperature
-20 °C
Max. temperature
70 °C
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Exact12
- Functions: LED
- Housing: Plastic
- CE 1
- Protection class IP65;IP67
- UKCA 1
- Mounting type: Screw thread
- Mounting thread M12 x 1
- Min. Operating temperature: -20
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 70
- Flame retardant: Flame retardant
- Length: 15
- Operating voltage DC 24
- Housing material: Plastic
- Connection technology Power line: Permanently attached main line
- Number of slots: 8
- CONNECTION TECHNOLOGY I/O M12
- China RoHS 25: 1
- Number of channels: 8
- Operating current per contact max. 4
- CULus 1
- Sales text 2: 15.0m PUR/PVC 8x0.34+3x0.75, UL/CSA
- MATERIAL SHORT TEXT: MVP12N-AN8V362 15.0M
- Type
MVP12N-AN8V362 15.0M
- Product type
Sensor/actuator contact splitter
- Nominal voltage
24
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Manufacturer part #
8000-88410-3621500
- Content
1 pc(s)
- Material
Plastic
- Protection class
IP65
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3765401 Murrelektronik 8000-88410-3621500 Sensor/actuator contact splitter 1 pc(s)
Datasheet 3765401 Murrelektronik 8000-88410-3621500 Sensor/actuator contact splitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3765401 Murrelektronik 8000-88410-3621500 Sensor/actuator contact splitter 1 pc(s)
Description
Exact12, 8xM12, 4-pin, ltd. Conn. Firmly 15.0m PUR/PVC 8x0.34+3x0.75, UL/CSA-Exact12, 8xM12, 4-pin, fixed-Murrelektronik GmbH
