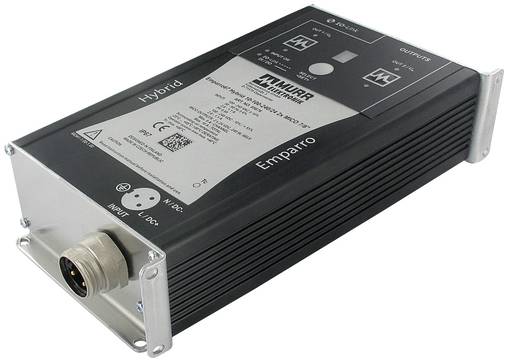

Murrelektronik 85676 SMPSU Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Emarro67
- Functions: Intelligent power monitoring;PFC;IO-Link device
- Suitable for mounting method: 6-hole screw mounting
- CE 1
- Protection class IP67
- Over-temperature protection Output: Yes
- UKCA 1
- Short-circuit protection output: Yes
- Phases: 1
- Depth: 53
- Connector type: Connector
- Type: Switched-mode power supplies
- Width: 110
- Mounting type: Screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -25
- Height: 216
- Max. Operating temperature: 80
- Min. Storage temperature: -25
- EMISSION LEVEL IEC/EN 55022;IEC 61000-3-2
- Storage temperature max.: 85
- Connection type 1: Output
- Output voltage: 24 V … 28 V.
- Connection type 2: Signal
- Output voltage DC 24
- Characteristic: Slow-blow
- Safety measure: SELV
- Input voltage: 90 V – 265 V
- Parallel switching capability: No.
- Input voltage DC min.: 90
- Operating current: 8 A … 10 A.
- Max. Operating current: 10
- Overload protection output: Yes
- Input voltage DC max. 265
- CULus 1
- Output voltage DC max. 28
- Input voltage AC 240
- Operating current min.: 8
- Output voltage DC min.: 24
- Input voltage AC min.: 90
- Output current max. 10
- Series connection: No.
- Input voltage AC max. 265
- Input current AC:1.2
- Material short text: Emparro67 Hybrid 10-100-240/24 7/8''
- Derating 50
- Effective residual ripple max.: 10
- Protection of primary side internal: 6.3
- Number of output channels: 2
- Ambient temperature: -25 °C to 85 °C
- PRODUCT STANDARD EN IEC 61010-2-201;EN 61204-3
- Spikes: 150
- Output current per channel max. 8
- Switch-on current max. 5.9 A @ 230 V.
- Relative humidity: 4% … 100%
- MTBF: 432000 h @ 40°C
- Power factor 230 V AC
- Product type
SMPSU
- Min. input voltage
90
- Output voltage
24 V … 28 V
- Input voltage
90 V … 265 V
- Input voltage (max.)
265
- Phases
1
- Connection
Connector
- Dim
(W x H x D) 110 x 216 x 53 mm
- Output voltage (max.)
28 V
- Output voltage (min.)
24 V
- Manufacturer part #
85676
- Content
1 pc(s)
- Width
110 mm
- Height
216 mm
- Max. temperature
80 °C
- Min. temperature
-25 °C
- Type
Emparro67 Hybrid 10-100-240/24 7/8''
- Depth
53 mm
- Protection class
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762830 Murrelektronik 85676 SMPSU Content 1 pc(s)
Datasheet 3762830 Murrelektronik 85676 SMPSU Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3762830 Murrelektronik 85676 SMPSU Content 1 pc(s)
Description
Emparro IP67 1-phase switched-mode power supply: 24VDC 10A - 7/8" 5P - SELV IN: 100-240VAC - 7/8" 3P 2 channels, IO-Link-Emarro IP67 switched-mode power supply 1-Phase-Murrelektronik GmbH
