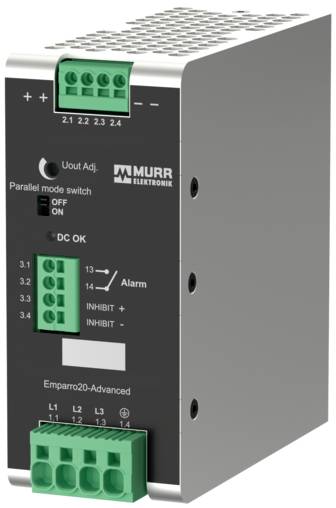

Murrelektronik 9000-17332-1221110 SMPSU 24 V DC 10.6 A 240 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Emarro20-Advanced
- Functions: Hunt group output;PFC;low emission of fault
- Suitable for mounting type: Carry rail TH35-7.5/TH35-15
- Aluminium casing
- CE: 2014/30/EU
- Protection class: IP20
- Over-temperature protection Output: Yes
- UKCA 1
- Short-circuit protection output: Yes
- Phases: 3
- Depth: 138.2
- Push-in terminal connection type
- Type: Switched-mode power supplies
- Width: 55
- REACH: Compliant
- DIN rail mounting method
- Network frequency: 50~60 Hz
- Height: 129
- WEEE: Compliant
- IEC 61000-6-2 immunity
- Switch-off characteristics: Constant current
- Min. Storage temperature: -40
- Emission of interference EN IEC 61000-6-3
- Storage temperature max.: 85
- Connection type 1: Alarm
- Flammability class housing V-0
- Phase number input: 3
- Output voltage: 22.5 V … 29 V.
- Connection type 2: Input
- Output voltage DC 24
- Alarm contact: Yes
- Pollution level: 2
- China RoHS 25: 1
- Safety measure SELV/PELV
- Mounting position: Horizontal;vertical
- Protection class: I
- Input voltage: 342 V – 575 V
- Connection type 3: Output
- Parallel switching capability: Yes
- Input voltage DC min.: 450.5
- Operating current: 5 A … 10 A.
- Max. Operating current: 10
- Overload protection output: Yes
- Input voltage DC max. 810
- CULus 1
- Output voltage DC max. 29
- Net weight: 780
- Operating current min.: 5
- SEMI F47: Compliant
- Output voltage DC min.: 22.5
- Input voltage AC min.: 342
- Sales text 2: IN: 3x342 - 575VAC; out: 22.5 - 29V/10ADC
- Output current max. 10.6
- Series connection: Yes
- Input voltage AC max. 575
- Material short text: Emparro20-Advanced-3-240-24
- Halogen-free material: Halogen-free;JEDEC/ECA JS709
- Pb-free material: JEDEC JESD97
- Conformal coated PCB: No.
- Cooling method: Natural air circulation
- UL Listed E200364
- Max. Installation height NHN: 3000
- Discharge of static electricity: Criterion A.
- High-frequency electromagnetic fields: Criterion A.
- Ambient temperature: -40 °C - 85 °C
- Surge voltage: Criterion A
- Conducted noise variables induced by high-frequency fields: Criterion A
- Residual ripple 10
- Magnetic fields with energy frequencies: Criterion A
- Number of parallel devices max.: 3
- Spikes: 40
- Number of devices in series max.: 20
- Power boost 150
- Duration Power boost min.: 5
- RATED INPUT VOLTAGE AC: 3 × 380 V … 500 V
- RATED INPUT VOLTAGE DC: 530 V … 675 V
- Relative humidity: 95%
- NOMINAL CURRENT AC 3 × 0.59 A @ 380 V, 0.5 A @ 500 V
- POWER FACTOR 400 V AC @ 500 V AC
- Output power 240
- Output current min.: 8.2
- China RoHS EFUP-25
- Power backup max.: 40 ms @ 500 VAC
- RoHS exception: No RoHS exception
- Complies with RoHS
- NOMINAL CURRENT DC 530 V @ 675 V
- Nominal input voltage
3 x 400 - 500 V/AC
- Product type
SMPSU
- Min. input voltage
450.5
- Output voltage
22.5 V … 29 V
- Input voltage
342 V … 575 V
- Input voltage (max.)
810
- Max. output current
10.6 A
- Output current (max.) - rounded
10.6 A
240 W
- Output type (power supply units)
Adjustable
- Phases
3
- Output voltage (nominal)
24 V DC
- Connection
Clamp
- Dim
(W x H x D) 55 x 129 x 138.2 mm
- Weight
780
- Output voltage (max.)
29 V
- Output voltage (min.)
22.5 V
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
9000-17332-1221110
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
55 mm
- Height
129 mm
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
Emparro20-Advanced-3-240-24
- Depth
138.2 mm
- Material
Aluminium
- Protection class
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762814 Murrelektronik 9000-17332-1221110 SMPSU 24 V DC 10.6 A 240 W Content 1 pc(s)
Datasheet 3762814 Murrelektronik 9000-17332-1221110 SMPSU 24 V DC 10.6 A 240 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3762814 Murrelektronik 9000-17332-1221110 SMPSU 24 V DC 10.6 A 240 W Content 1 pc(s)
Description
Switched-mode power supply Emparro20-Advanced-3-phase IN: 3x342 - 575VAC; OUT: 22.5 - 29V/10ADC switched-mode power supply Emarro20-Advanced-3-phase Murrelektronik GmbH
