Highlights & Details

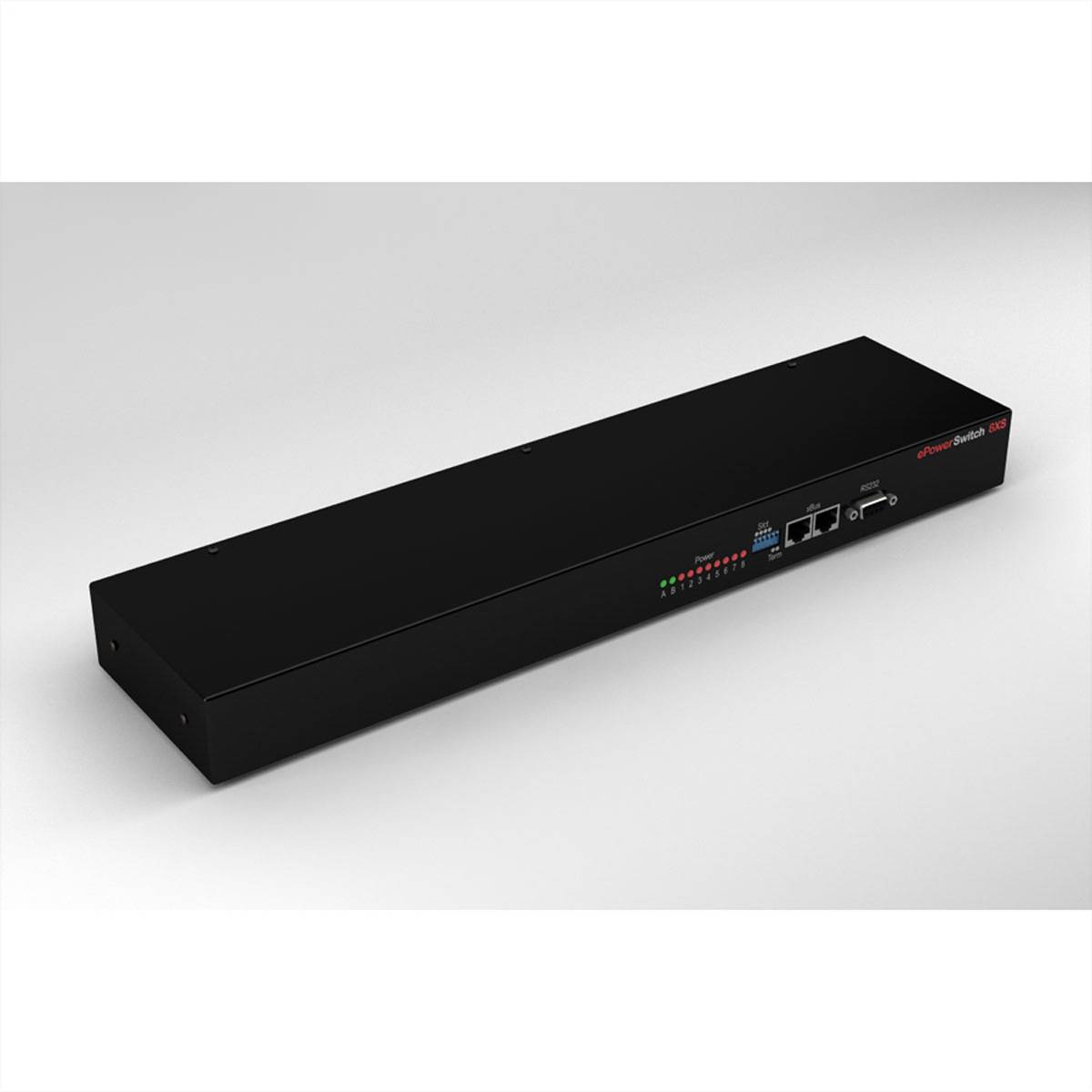

Neol ePowerSwitch 8 XS Satellite
- 2 separate 10A current inputs
- 8 mains switches each with 10A
- Up to 128 mains switches cascadable
- Special high current relay (120A / 20ms)
- Adjustable sequences for current circuit
Technical specifications
- Product group: Socket strips
- Product type: IP Power switch
- Function: Remote switching via IP
- 19" rack mount option
- Max. Load 10A
- Max. voltage 230V
- On/off switch: Yes
- Switch type IP
- Number of socket pots: 8
- Number of outputs/angle 2 x 4
- Arrangement outputs: Straight
- Material (casing): Metal
- Colour (housing): Black
- Connection cable: --

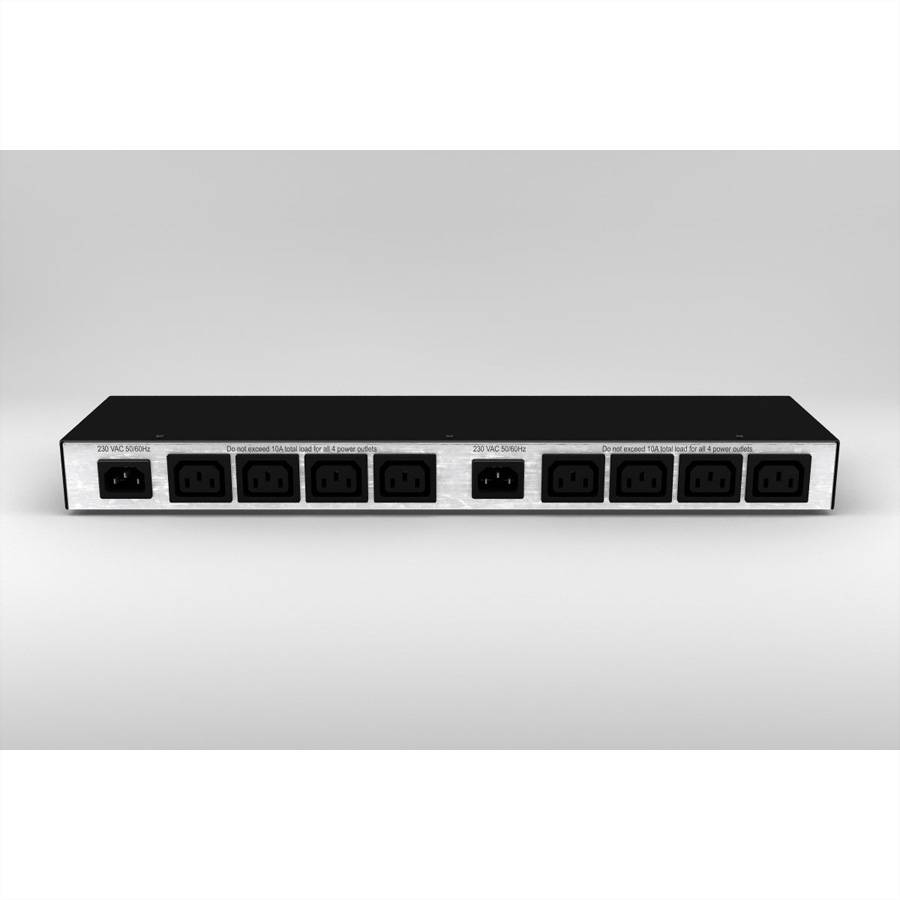

- Plug IEC320 C13 /C14, cold devices
- Technical features: 19"; Web frontend, X function, can only be used as slave unit
- Height: 42 mm
- Width 437 mm
- Depth: 107 mm
- Weight: 2 kg
- Packaging height 60 mm
- Package width 220 mm
- Packaging depth 550 mm
- Package weight: 2,553 kg
- Gross weight: 2.553
- Product type
Socket
- Outlets
8
- Factory colour
Multicolour
- Dim
(W x H x D) 437 x 42 x 107 mm
- Width
437 mm
- Height
42 mm
- Depth
107 mm
- Content
1 pc(s)
- Interfaces
RJ45
- Rack size
483 mm (19")
- Operating voltage
230 V
- Weight
2.553
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797263 Neol EPS-8XS-EU Socket Multicolour
User & Safety Instructions
User & Safety Instructions 3797263 Neol EPS-8XS-EU Socket Multicolour
Description

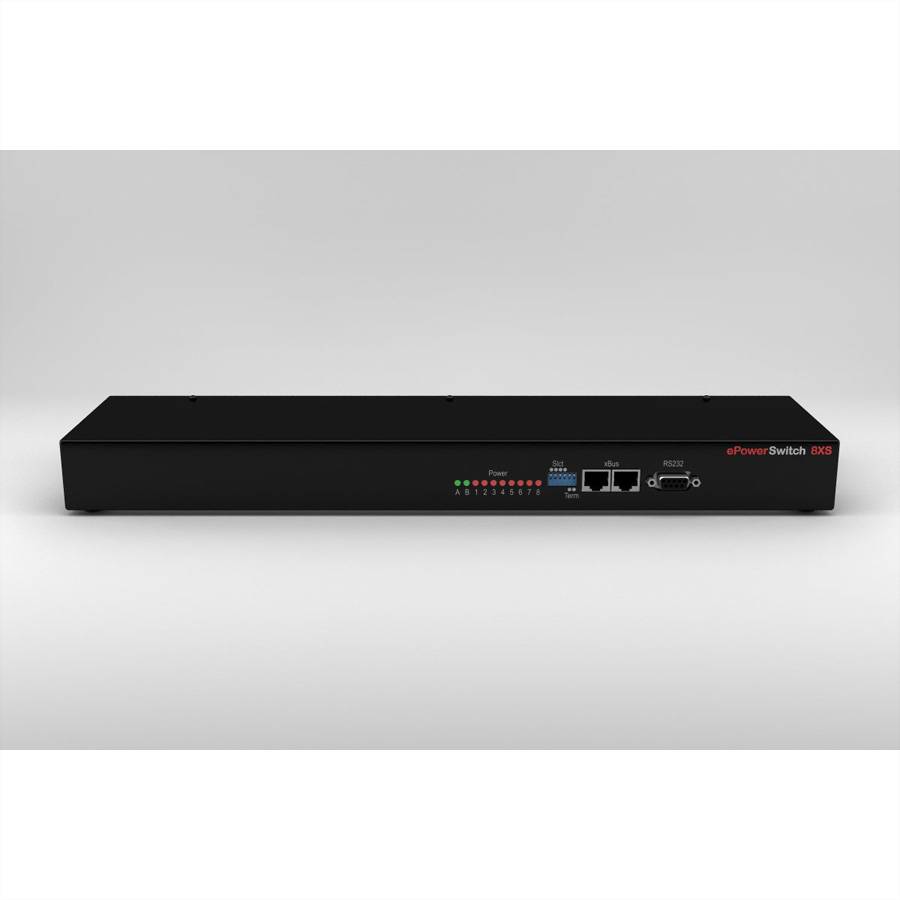

Neol ePowerSwitch 8 XS Satellite The ePowerSwitch 8XS offers numerous extension options for all ePowerSwitch Master devices and the VizioGuard system. A total of 8 IEC320 power switches are available, which can be switched individually and as any group. The house's own XBus connection (standard RJ45) guarantees the extension (ePowerSwitch 8XS, ePowerSwitch 1XS, etc.) of the system to up to 136 IEC320-power switches. A simple configuration and termination of the cascade is possible by means of the DIP switch on the front side. The device as well as the power switches are controlled via an ePowerSwitch Master or via a KVM. Switch operated. . 2 separate 10A current inputs. 8 mains switches each with 10A. Up to 128 mains switches cascadable. Power switches are controlled via an ePowerSwitch Master or the VizioGuard system. Serial interface with ASCII protocol for controlling the power switch with a KVM switch, server console, PC and much more. Special high current relay (120A / 20ms). Programmable for a restart. Adjustable sequences for current circuit. Firmware update via serial port. Only occupies 1U in the rack
This text is machine translated.
Scope of delivery
- • Multiple socket outlet
- • Instructions
