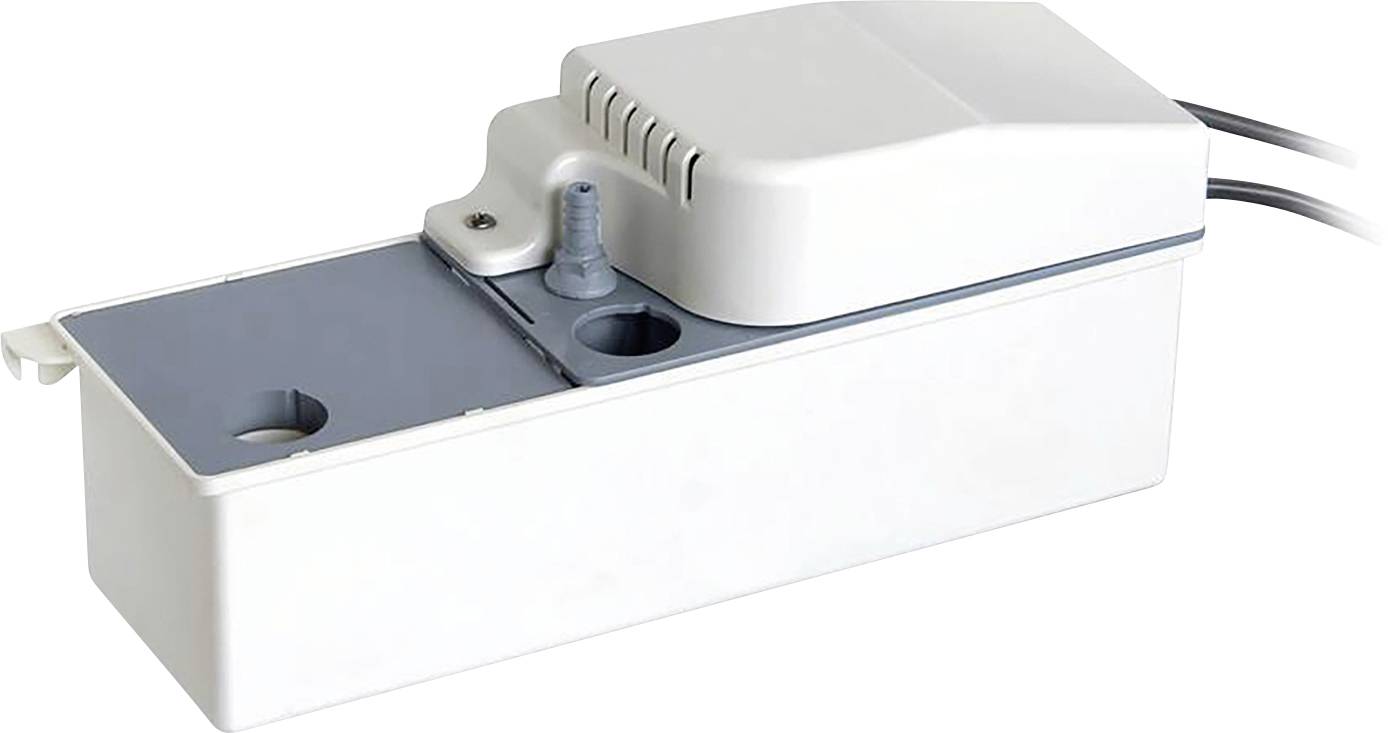

Neotech Neotech 330 XPH Condensate pump PG connector 370 l/h 4.6 m 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Condensate pump Neotech 330 XPH - For condensing boiler and air conditioning units
- Pump part removable and can be rotated by 180°; 44 dB(A) noise level; Large flow rate
Technical specifications
- Nominal current max. 0.75 A
- Noise level 44 dB(A)
- Tank volume 0.81 l
- Product type
Condensate pump
- Features
PG connector
- Type
Pump with built-in neutralizer
- Operating voltage
230 V
- Max. delivery head
4.6 m
- Max. feed rate
370 l/h
- Pressure connection
8 mm
- Max. cable length
10 m
- Length
336 mm
- Width
104 mm
- Height
133 mm
- Dim
(L x W x H) 336 x 104 x 133 mm
- Weight
3 kg
IP20
Documents & Downloads
Datasheet
Datasheet 3733881 Neotech Neotech 330 XPH Condensate pump PG connector 370 l/h 4.6 m 230 V
User & Safety Instructions
User & Safety Instructions 3733881 Neotech Neotech 330 XPH Condensate pump PG connector 370 l/h 4.6 m 230 V
Description
Condensate pump for fully automatic extraction of acid-containing condensate from heating systems up to max. 50 kW where a discharge through gravity is not possible. Compact design with integrated neutralization unit, which can be changed quickly and cleanly as required. Suitable for condensate up to a pH of 2.8. With potential-free contact for safety shutdown or alarm signal. Includes non-return valve, hose and connections
This text is machine translated.
This text is machine translated.
Features
- 230V, 50Hz; alarm switch; 2m cable with safety plug; incl. 6m vinyl hose 9x12mm; with special tank and integrated neutralization
Scope of delivery
- Neutralization unit (approx. 700g granules in cloth bag)
- Discharge hose 6 m x 8 mm ID
- Feeder adapter for 3/4" hoses / DN50 HT tube max.
- Cable binder for adapter
- Self-adhesive foam rubber dampers
Hints
Maximum flow 370 l/h
Max. Delivery height (H max.): 4.6m
Voltage: Input 230V/50Hz
Nominal current: 0.75A
Protection class IP 20
Pressure connection: 3/8" with hose nozzle For hose 8mm ID incl. check valve
max. temperature 50°C
Cable length 2.0m with plug
