Nethix 90.06.010 IoT module 5 V DC Function (GSM): Read
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 84.70 / piece)
€ 84.70
incl. VAT
14-day return policy included
Highlights & Details

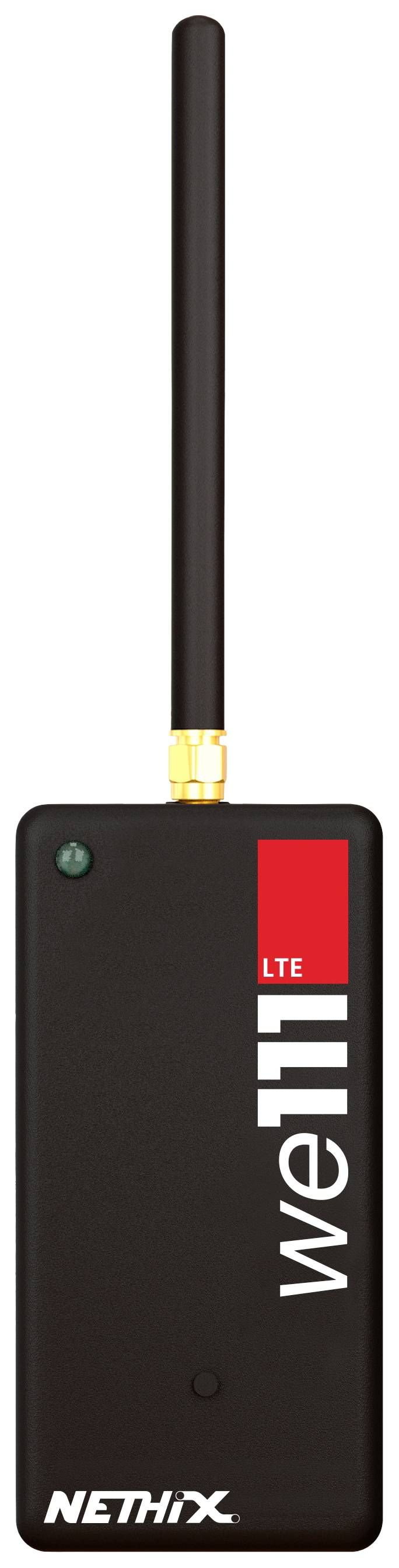

Mini IoT Module WE111 LTE
- Compact module with LTE technology
Technical specifications
- Average consumption 500mA, peak 2A
- Relay output:
- 2 A/30 V/DC
- 0.5 A/230 /AC
- Type
90.06.010
- Operating voltage
Via USB-C
- Product type
IoT module
- Operating voltage
5 V DC
- No. of relay outputs
1
- Function
Read
- Interfaces
USB-C
- Depth
23 mm
- Length
85 mm
- Width
40 mm
- Dim
(L x W) 85 mm x 40 mm
- Max. current consumption
2 A
- Manufacturer part #
90.06.010
- Max. temperature
+55 °C
- Min. temperature
-15 °C
- Weight
55 g
Documents & Downloads
Datasheet
Datasheet 3059161 Nethix 90.06.010 IoT module 5 V DC Function (GSM): Read
User & Safety Instructions
User & Safety Instructions 3059161 Nethix 90.06.010 IoT module 5 V DC Function (GSM): Read
Description
The new series of the MINI-PROGRAMMABLE MODULES WE11X is for remote control and monitoring. Versatility is its strength. Thanks to their small size and the configurable input on the board, these products offer the right solution for various IoT applications. The WE11X products collect data from the field via a configurable input and make it available in the cloud or on a server. Thanks to programmable logic, you can manage alarms and automatic actions.
This text is machine translated.
This text is machine translated.
Features
- Main functions
- Monitoring and control of input/output
- Integrated web server
- Timeplanners
- Remote upgrade of the software
- Backup/restore the configuration
- Alarms via SMS/E-MAIL/CHAT
- Commands via SMS/EMAIL/CHAT
- Real-time graphics
- Supported plug-ins
- VPN
- Applications
- Intelligent system
- Lighting
- Monitoring of water networks
- Access control
- Intelligent agriculture
- Weather monitoring
- Vending machines
