Niedax RSUS 110.300 OV Cable duct 3 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Cable duct
- Content
3 m
300 mm
Without connector
110 mm
Continuously galvanized
Screwed
8.44073 kg/m
2 mm
FALSE
Other
3000 mm
-20-120 °C
Steel
FALSE
32800 mm²
FALSE
3000 mm
FALSE
FALSE
Type II
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795572 Niedax RSUS 110.300 OV Cable duct 3 m
Description

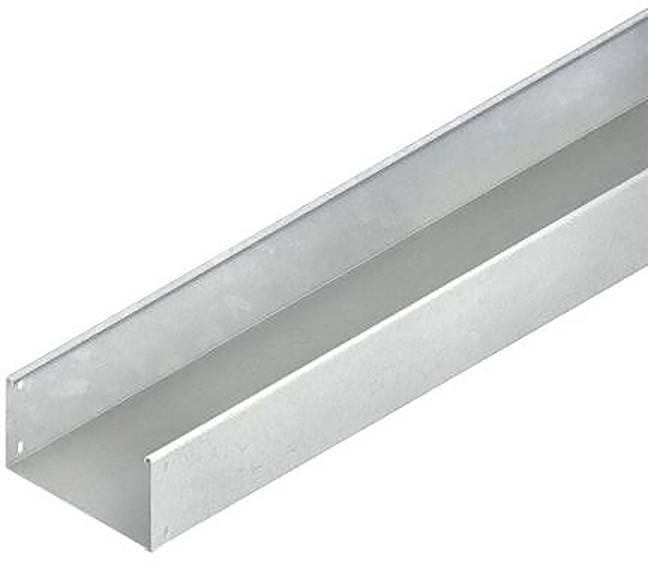

Cable channel, heavy, unperforated according to DIN EN 61537, without connector but with fixing holes at both ends for the connection, for the walkable cable channel system. Two universal connectors RSUVKS 110-1.5 S for each joint please order separately. Dimensions (approx. dimensions) H x W: 110 x 300 mm material thickness t : 2 mm Delivery length L : 3000 mm Usable cross-section : 32800 mm² Material: Steel, galvanized in accordance with DIN EN 10346
