Niedax STIC 86/503 Stepladder 6 m
EAN:
Part number:
Item no:
Technical specifications
- Product type
Stepladder
- Content
6 m
580 mm
80 mm
Hot-dip galvanized
17.0678 kg/m
Imperforated profile
TRUE
Other
6000 mm
-20-120 °C
Steel
28768 mm²
6000 mm
Profile (open)
TRUE
300 mm
Other
TRUE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795568 Niedax STIC 86/503 Stepladder 6 m
Description

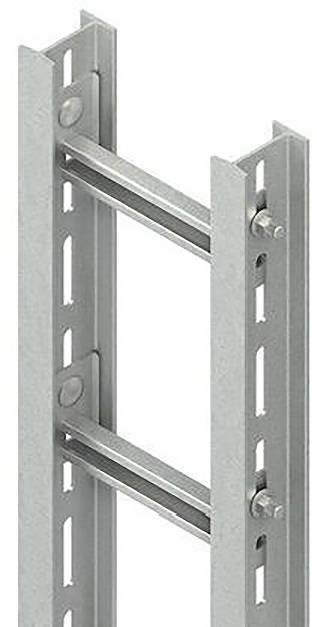

Climb tray according to DIN EN 61537, heavy design, comprising of warm-rolled continuous perforated profiles I 80 according to DIN 1025 and screw-in C-profile rungs 2986 with 18 mm slit width, including hot-dip galvanized proportional fixing accessories. The continuous perforation of the side beams allows the installation of additional rungs, for example two-sided occupancy. The delivery takes place for transportation reasons as kit. Suitable clip clips (BU... And BUK...). Please observe additional regulations for use in the functional endurance! Delivery : unassembled dimensions (approx. dimensions) H x W : 80 x 580 mm spar Dimensions : 80 x 42 mm Distance between rungs : 300 mm Number of rungs : 20 pieces 3-sided hollow holes : 13 x 75 mm Middle distance : 100 mm Load capacity for B/2 : 1.75 kN Delivery length L: 6000 mm Usable cross-section: 28768 mm² Material: Steel, dip-dip galvanized according to DIN EN ISO 1461
