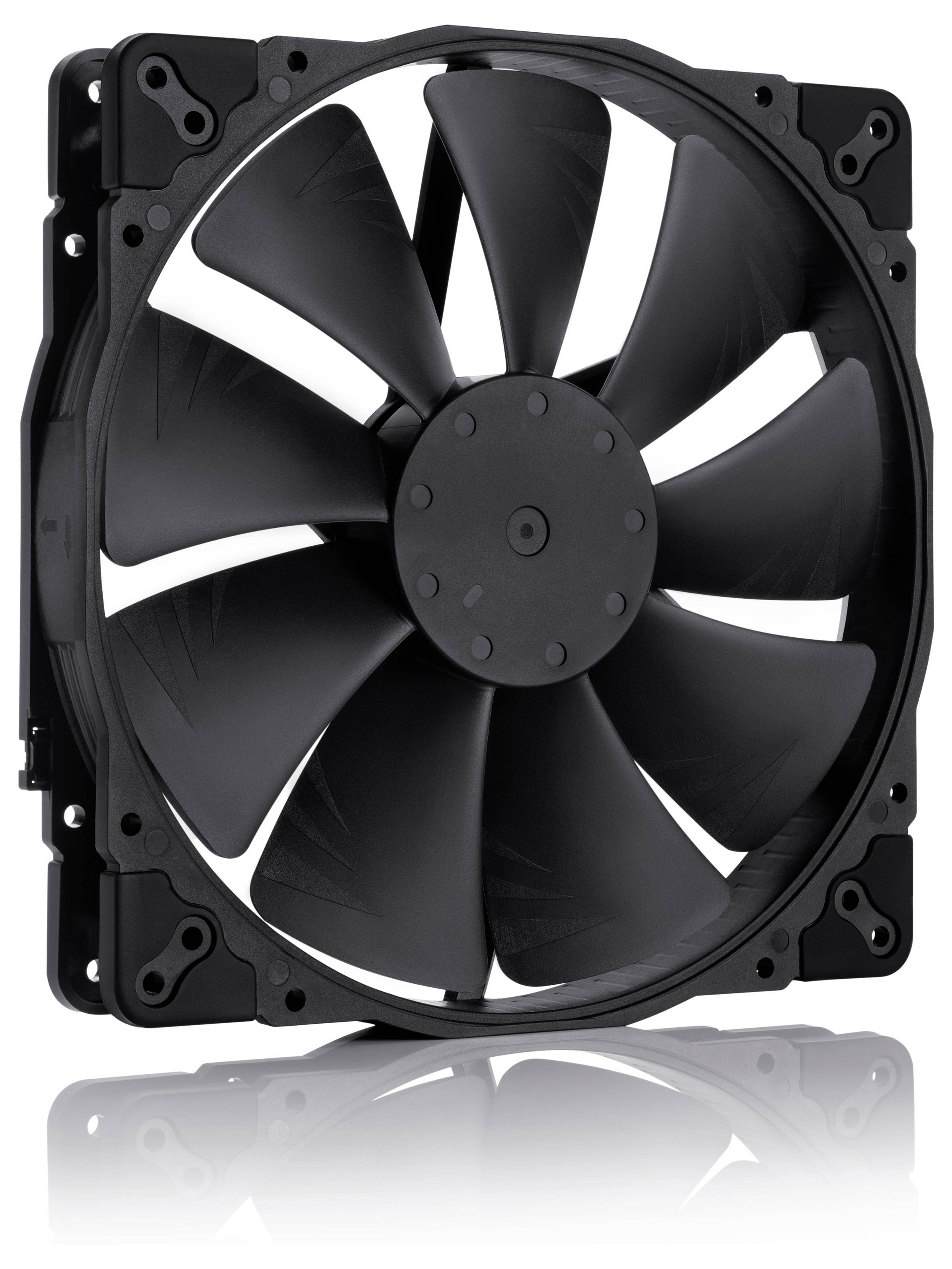

Noctua PC-Gehäuselüfter Noctua NF-A20 PWM chrom PC fan Black (W x H x D) 200 x 30 x 200 mm
EAN:
Part number:
Item no:
Highlights & Details
Noctua PC-Gehäuselüfter Noctua NF-A20 PWM chrom PC fan
- Computer housing fan 20 cm 800 RPM
- 18.9 dB 1.08 mmH2O Self-Stabilisation Oil-pressure Bearing (SSO)
- Support for pulse width modulation
- Black
Technical specifications
- Fan diameter 20 cm
- Storage type: Self-stabilization oil-pressure bearing (SSO)
- Number of fans: 1 fans
- 4-pin fan connector
- Product type
PC fan
- Noise emission (max.)
18.9 dB
- Noise emission
10.1 dB - 20 dB
- Rotational speed (min.)
350 U/min
- Air discharge
146.9 m³/h
- Rotational speed (max.)
800 U/min
- Factory colour
Black
- Width
200 mm
- Height
30 mm
- Depth
200 mm
- Dim
(W x H x D) 200 x 30 x 200 mm
- Content
1 pc(s)
- Material
Plastic
- Type
Fan
- Power consumption (ON)
0.96 W
- UKCA
yes
- Number of screws
4
- Screws included
yes
- Rated voltage
12 V
- Number of speeds
2
- Pulse-width modulation (PWM) support
yes
- Rated current
0.08 A
- Number of fan blades
9
- Mean time between failures (MTBF)
150000 h
- Maximum air pressure
1.08 mmwc
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818469 Noctua PC-Gehäuselüfter Noctua NF-A20 PWM chrom PC fan Black (W x H x D) 200 x 30 x 200 mm
Description

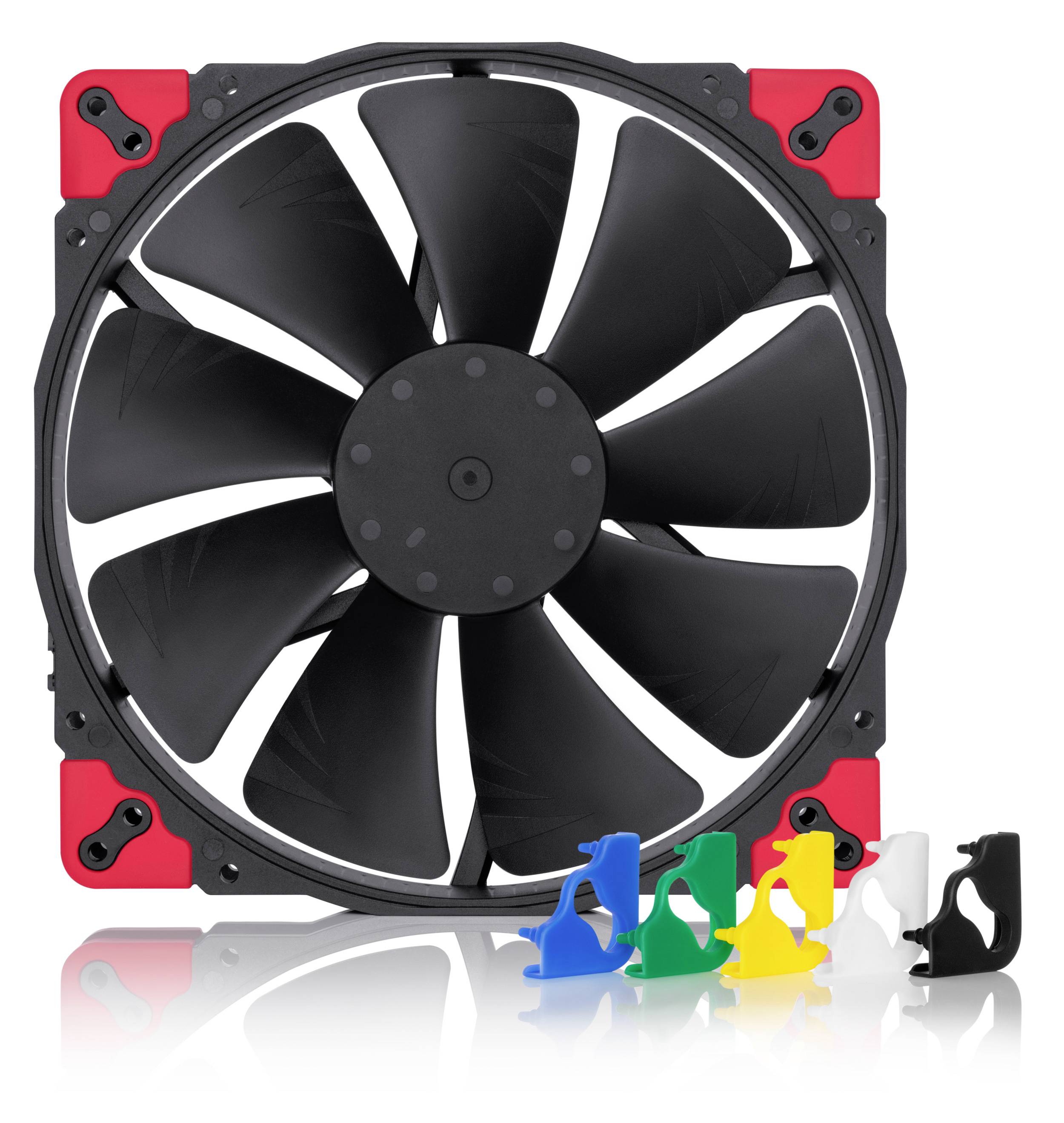

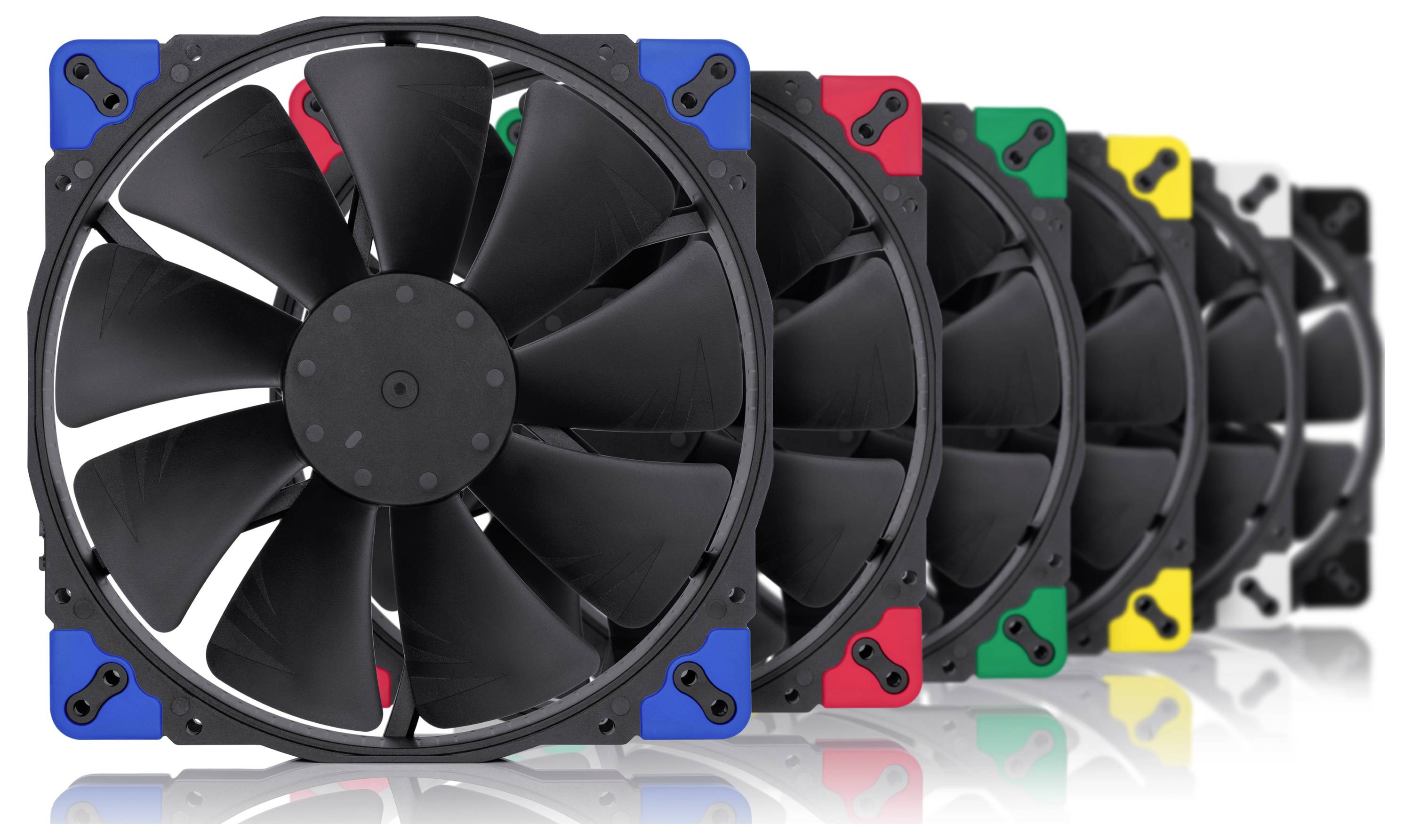

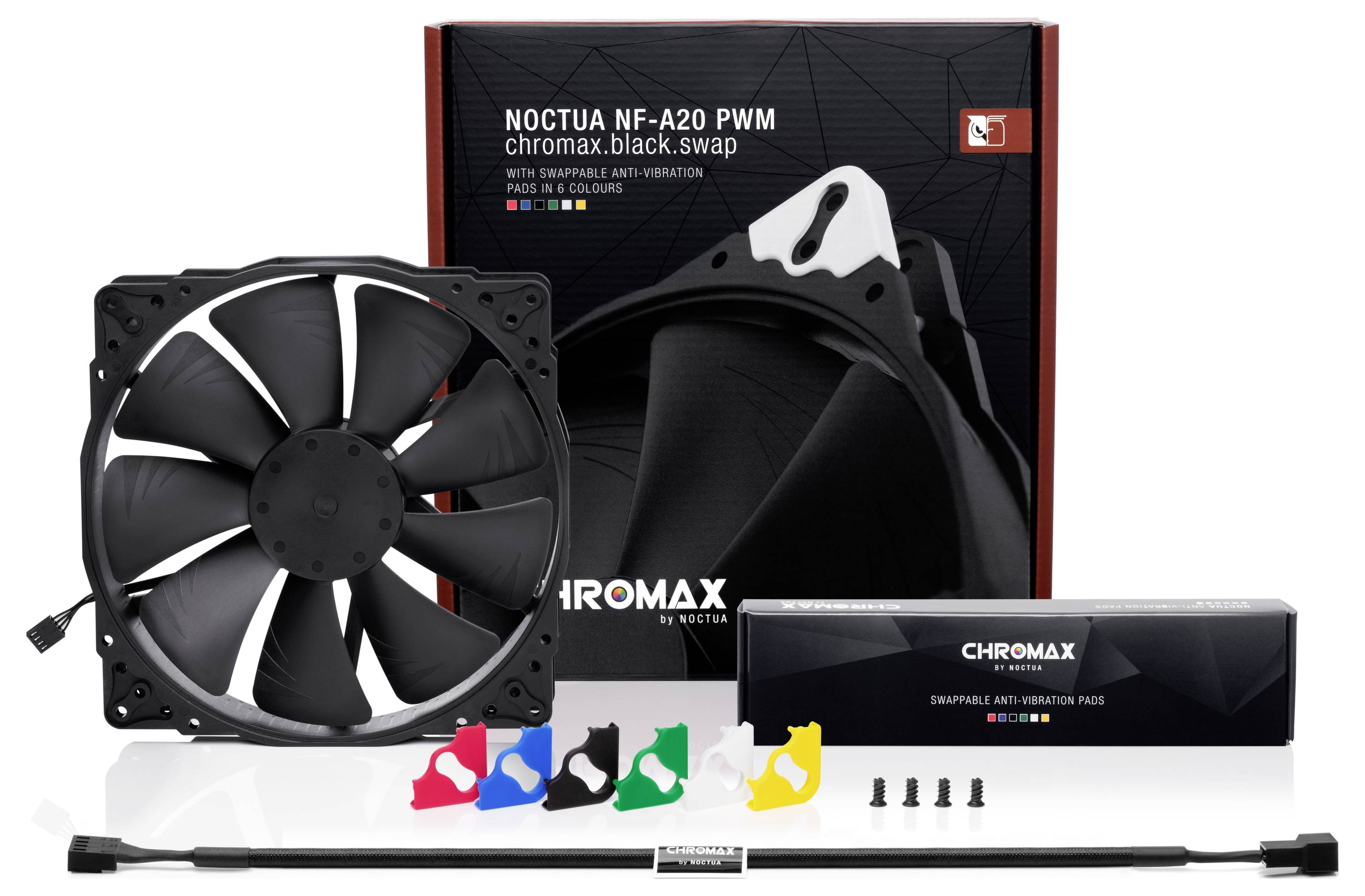

The NF-A20 has received numerous awards and recommendations from international hardware websites and magazines and has established itself as a reference for 200mm fans in premium quality. The chromax.black.swap-edition combines the unique silent cooling performance of the NF-A20 with an attractive, completely black design as well as exchangeable anti-vibration pads in red, white, blue, green, yellow and black – in this way the fan can be customized color and adapted to specific color schemes. Additional accessories such as colored cables, additional anti-vibration pads or anti-vibration mounts are available for even greater customization. With Noctua's proven SSO2 premium bearing, more than 150. Black.swap, the perfect choice for users who value individual, focused aesthetics as well as first-class quality and performance.
This text is machine translated.
This text is machine translated.
Features
- NF-A20 design with many awards and recommendations from the international trade press, the NF-A20 has become a reference in the field of high-quality 200mm fans. Its outstanding efficiency has already convinced tens of thousands of customers around the world
- Optional colored cables: Noctuas chromax fans fall back on a modular cable system and are delivered with a completely sheathed black NA-EC1 30cm cable from the factory. White, red, blue, green, and yellow NA-EC1 cables and matching NA-YC1 Y cables are available separately for even greater color matching
- Optional colored anti-vibration mounts Optional colored anti-vibration fittings
- Suitable for the provided anti-vibration pads are available in the chromax product line colored NA-SAV2 anti-vibration mounts, which enable a comfortable, quick and vibration-free mounting of the fans in standard mounting holes for housing fans

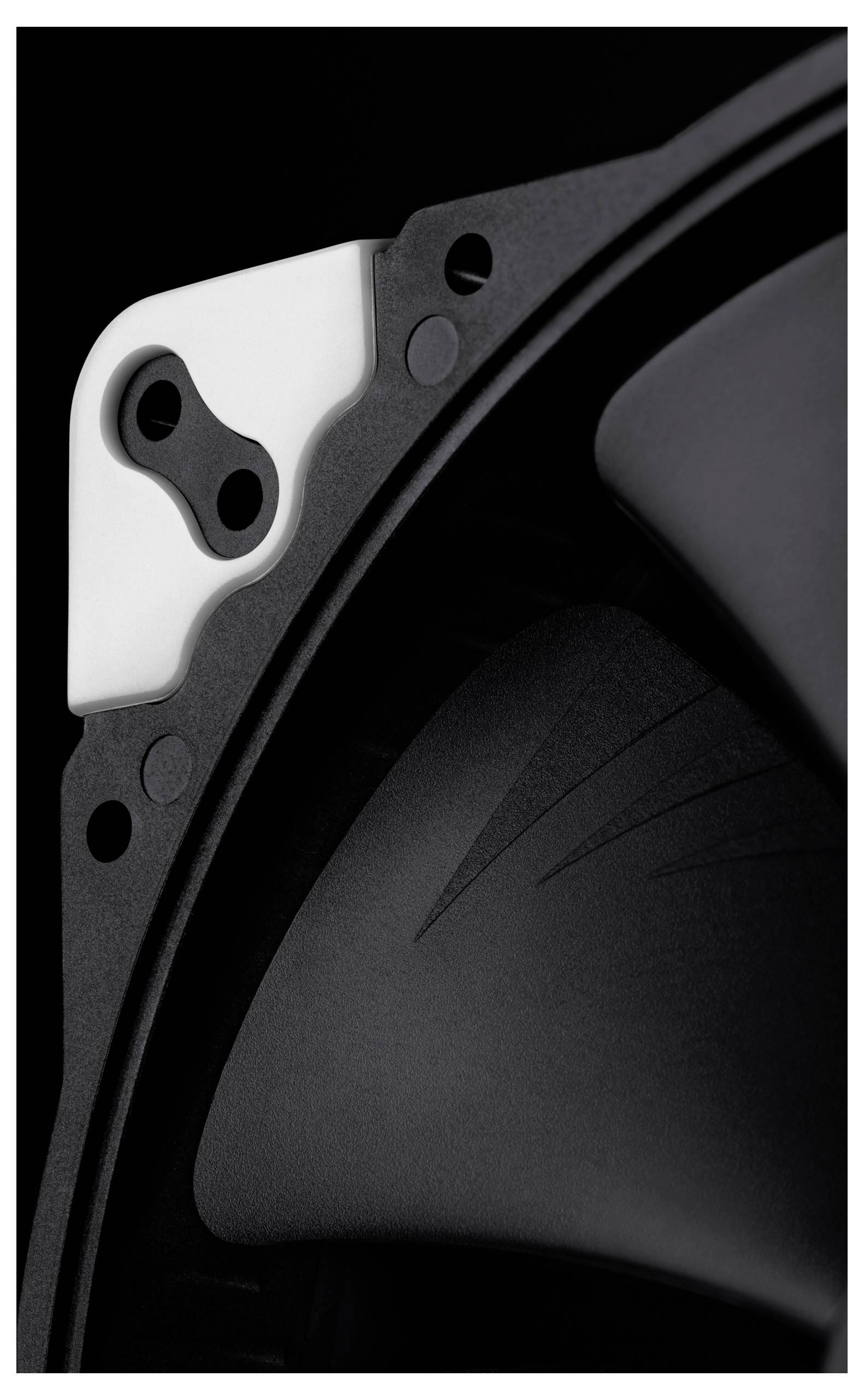

- AAO Frame System: Noctuas AAO (Advanced Acoustic Optimization) frames feature built-in vibration buffers as well as a tiered inlet area (Stepped Inlet Design) and an interior microstructure (Inner Surface Microstructures) that provide even better performance/noise efficiency
- Stepped Inlet Design: The stepped inlet area of the Stepped Inlet Design creates more turbulence in the flow. Thus the transition from laminar to turbulent flow is simplified, which adheres better to the frame (Flow Attachment) and thus increases the suction capacity of the fan especially in restricted suction area
- SSO2 storage system: The NF-A20 is equipped with the further optimized second generation of Noctua's proven SSO bearing system. With SSO2, the rear magnet sits closer to the fan axle and thus causes an even better stabilization, WAS to a further improved precision and Leads to durability
- PWM IC with SCD: The fan supports fully automatic speed control via PWM and falls back on Noctua's specially designed NE-FD1 chip. This new PWM IC integrates Noctuas Smooth Commutation Drive (SCD) technology which minimizes PWM switching noise and thus makes the fan quieter at low speeds
