Nowax 1741106400 STPN 600 Effluent sump pump PG connector 10000 l/h 6.5 m
EAN:
Part number:
Item no:
Highlights & Details

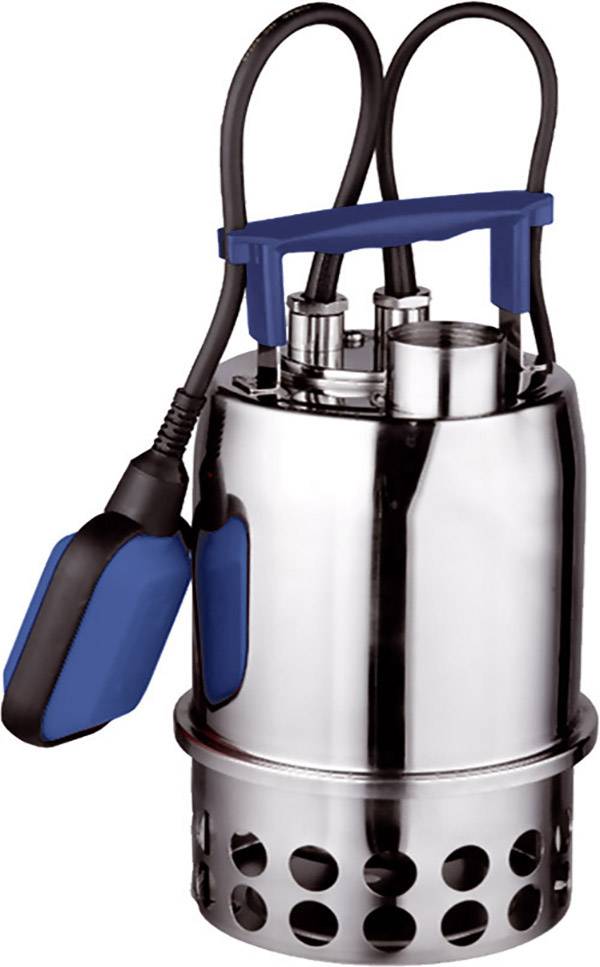

Stainless steel waste water submersible pump STPN 600
- All main components including impeller made of stainless steel
- Grain size up to Ø 20 mm
- Mechanical seal in Olvorlage (pump side)
Technical specifications
- Cable type: H07RN-F
- Grain size (max.): 20 mm
- Condenser: 8.0 µF.
- Product type
Effluent sump pump
- Features
PG connector
- Max. delivery head
6.5 m
- Max. feed rate
10000 l/h
- Max. discharge pressure
0.65 bar
- Operating voltage
230 V
- Power (P2)
500 W
- Pressure connection
39.0 mm (1 1/4") IT
- Type
Submersible pump for dirty water
- Immersion depth
Max. 5 m
- Max. cable length
10 m
- Operating time (OT)
Non-stop
- Float switch
Yes
- Overload protection
Yes
- Width
167 mm
- Height
304 mm
- Dim
(W x H) 167 mm x 304 mm
- Weight
5.2 kg
IP68
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1606907 Nowax 1741106400 STPN 600 Effluent sump pump PG connector 10000 l/h 6.5 m
User & Safety Instructions 1606907 Nowax 1741106400 STPN 600 Effluent sump pump PG connector 10000 l/h 6.5 m
Information
Information 1606907 Nowax 1741106400 STPN 600 Effluent sump pump PG connector 10000 l/h 6.5 m
Description
Applications:
Disposal of waste water. Drainage of basements and garages. Emptying of pump shafts and containers for leachate and rain water. Disposal of gray water from washing machines, dishwashers and showers.
Main features:
Additional shaft seal (engine side)
Ceramic-coated shaft sleeve
Standard Check Valve
Continuous operation hard, even in partially over the desks condition
With floating-switch.
This text is machine translated.
Disposal of waste water. Drainage of basements and garages. Emptying of pump shafts and containers for leachate and rain water. Disposal of gray water from washing machines, dishwashers and showers.
Main features:
Additional shaft seal (engine side)
Ceramic-coated shaft sleeve
Standard Check Valve
Continuous operation hard, even in partially over the desks condition
With floating-switch.
This text is machine translated.
Scope of delivery
- Submersible pump
- 10 m power cord
- Earthing contact plug
- Float switch
- Separate backflow preventer.
