nVent SCHROFF 10236166 19" rack chassis 600 x 20 x 600 Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
19" rack chassis
Width
600 mm
Height
20 U
Features
wallmount option
Factory colour
Grey
Datasheet (PDF)
Highlights & Details
SCHROFF EPCCASE 20 HE, (H x W x D) 962 x 600 x 600 mm
Our service for you
Technical specifications
- Product type
19" rack chassis
- Features
wallmount option
- Factory colour
Grey
- Width
600 mm
- Height
20 U
- Content
1 pc(s)
- Dim
(W x H x D) 600 x 20 x 600 mm
- RoHS-compliant
Yes
- Depth
600 mm
- Type
10236166
- Rack unit
20 U
- Weight
53
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2989462 nVent SCHROFF 10236166 19" rack chassis 600 x 20 x 600 Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2989462 nVent SCHROFF 10236166 19" rack chassis 600 x 20 x 600 Grey 1 pc(s)
Description

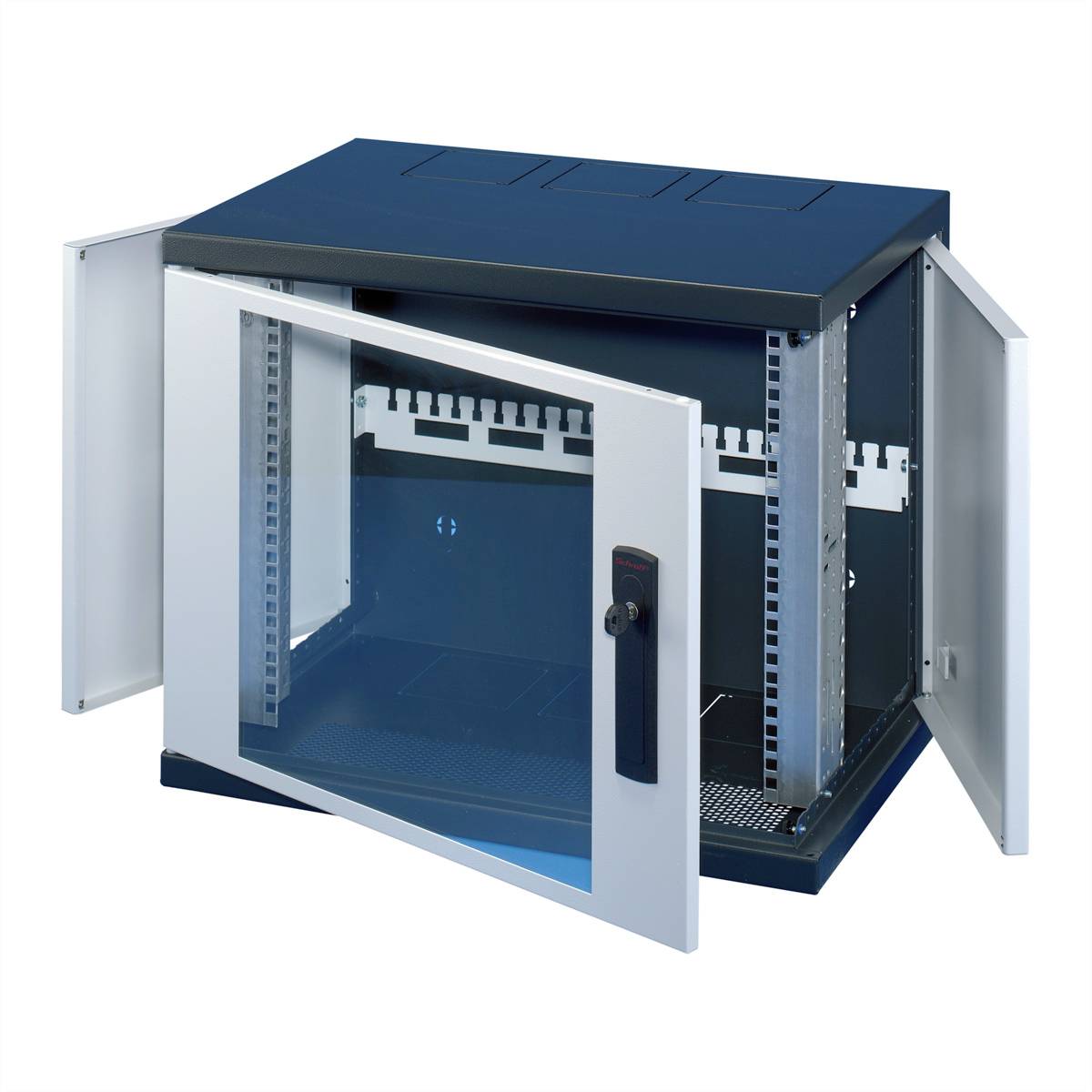

Epcase 19" cabinet, wall mounting, 20 HE, 600 T
EPCASE Stand/wall housing fully assembled for simple and small office installations
Basic housing (black, RAL 7021) with three break-out zones each for cable entry or for fan installation at the top and bottom
Door and side walls RAL 7035 (light gray). Side walls can be swiveled and removed, thus optimal accessibility during installation
Four ready-made cable inputs for the separation of power and data cables
C profile supplied for strain relief
Only one 19" level
Equipment: Basic housing in C-shaped glass door with safety locks Side walls 19" angle Profile1 pc. C-Profile for cable interception 2 pc brush strips
Optional accessories (please order separately) Grounding kit 26.10.0208 for standard-compliant grounding in accordance with VDE standard fan kit 26.10.5023 for cabinet ventilation: Ventilator 230 V, with connecting cable (stranded wire, open) and grille
Mounting material 26.14.0010 for 19" components consisting of 32 pc. Cage nuts, M6 raised head screws and plastic discs
This text is machine translated.
EPCASE Stand/wall housing fully assembled for simple and small office installations
Basic housing (black, RAL 7021) with three break-out zones each for cable entry or for fan installation at the top and bottom
Door and side walls RAL 7035 (light gray). Side walls can be swiveled and removed, thus optimal accessibility during installation
Four ready-made cable inputs for the separation of power and data cables
C profile supplied for strain relief
Only one 19" level
Equipment: Basic housing in C-shaped glass door with safety locks Side walls 19" angle Profile1 pc. C-Profile for cable interception 2 pc brush strips
Optional accessories (please order separately) Grounding kit 26.10.0208 for standard-compliant grounding in accordance with VDE standard fan kit 26.10.5023 for cabinet ventilation: Ventilator 230 V, with connecting cable (stranded wire, open) and grille
Mounting material 26.14.0010 for 19" components consisting of 32 pc. Cage nuts, M6 raised head screws and plastic discs
This text is machine translated.
