nVent SCHROFF 20848206 Front plate EMC (W x H x D) 141.9 x 84 x 2.5 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Front plate
Features
EMC
Material
Aluminium
Rack unit
2 U
Highlights & Details
SCHROFF U-FRONT PL 2HE 28TE EMC M.PIN
- Excellent EMC properties: The U-profile is optimally shielded with an EMC seal made of textile. The back of the plate is conductive, the front side is anodized to protect
- Fit-to-fit format: accurately designed for 2 height units (RUs) and 28 width units (TE)

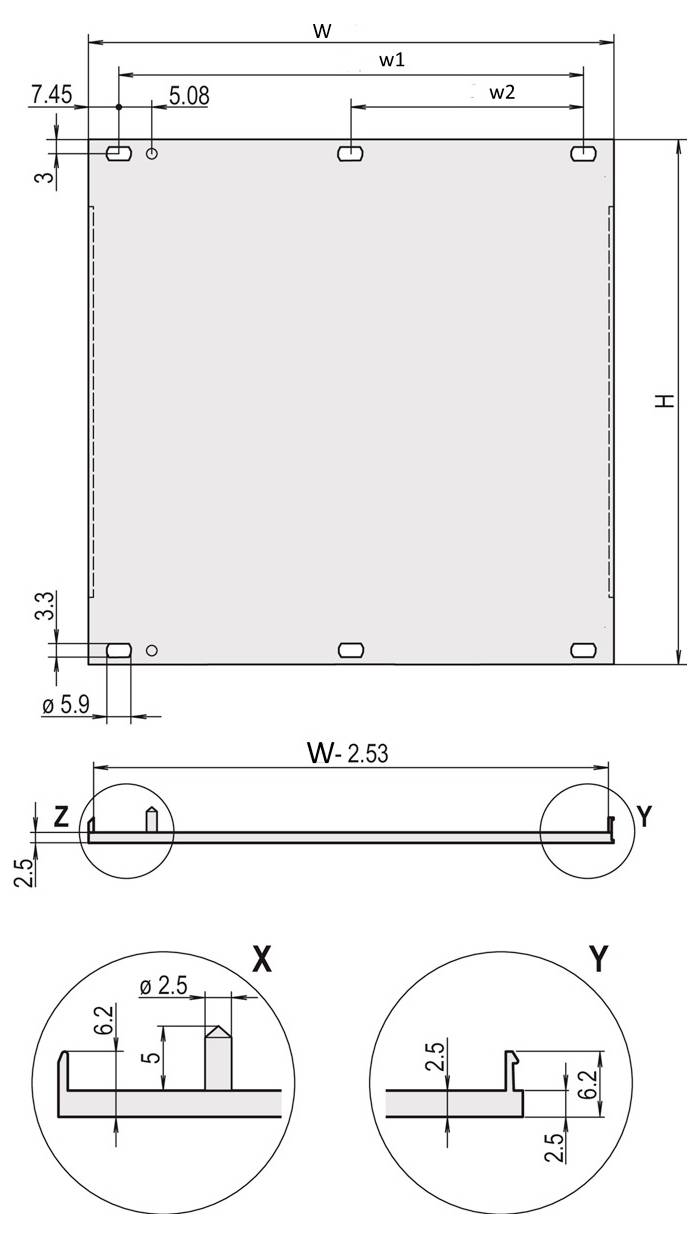

- Compact dimensions: The aperture has a height of 84 mm, a width of 141.9 mm and a material thickness (depth) of 2.5 mm
- Lightweight and rugged: Made from durable aluminum (Al), the component weighs only 0.088 kg
Technical specifications
- Packaging type
Piece
- Product type
Front plate
- Features
EMC
- Material
Aluminium
- Rack unit
2 U
- TE
28
- Width
141.9 mm
- Height
84 mm
- Depth
2.5 mm
- Dim
(W x H x D) 141.9 x 84 x 2.5 mm
- Weight
0.088 kg
- Content
1 pc(s)
- Type
20848206
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629365 nVent SCHROFF 20848206 Front plate EMC (W x H x D) 141.9 x 84 x 2.5 mm 1 pc(s) Piece
Description
Optimize the protection of your electronic components with the SCHROFF U front panel. This high-quality 2.5 mm thick aluminum front plate is specially designed for the secure retrofitting of an EMC textile seal. With its elegant, anodized front and conductive rear, it provides the ideal conditions for professional shielding of your IT and electronics systems.
