nVent SCHROFF 24828307 19 inch 1 x Server rack cabinet fan 3 U
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Server rack cabinet fan
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
3 U
- Voltage (max.)
12 V DC
- Dim
(W x H x D) 119 x 119 x 25 mm
5.3 W
- No. of fans
1 x
- Noise level
43 dB
- Content
1 pc(s)
- Width
119 mm
- Height
119 mm
- Depth
25 mm
Documents & Downloads
Datasheet
Datasheet 3204330 nVent SCHROFF 24828307 19 inch 1 x Server rack cabinet fan 3 U
Datasheet 3204330 nVent SCHROFF 24828307 19 inch 1 x Server rack cabinet fan 3 U
Datasheet 3204330 nVent SCHROFF 24828307 19 inch 1 x Server rack cabinet fan 3 U
User & Safety Instructions
User & Safety Instructions 3204330 nVent SCHROFF 24828307 19 inch 1 x Server rack cabinet fan 3 U
Description
Interscale fan bracket with fan, 3 U, 399 B, 310 T, 1 fans (119 x 119 x 25)

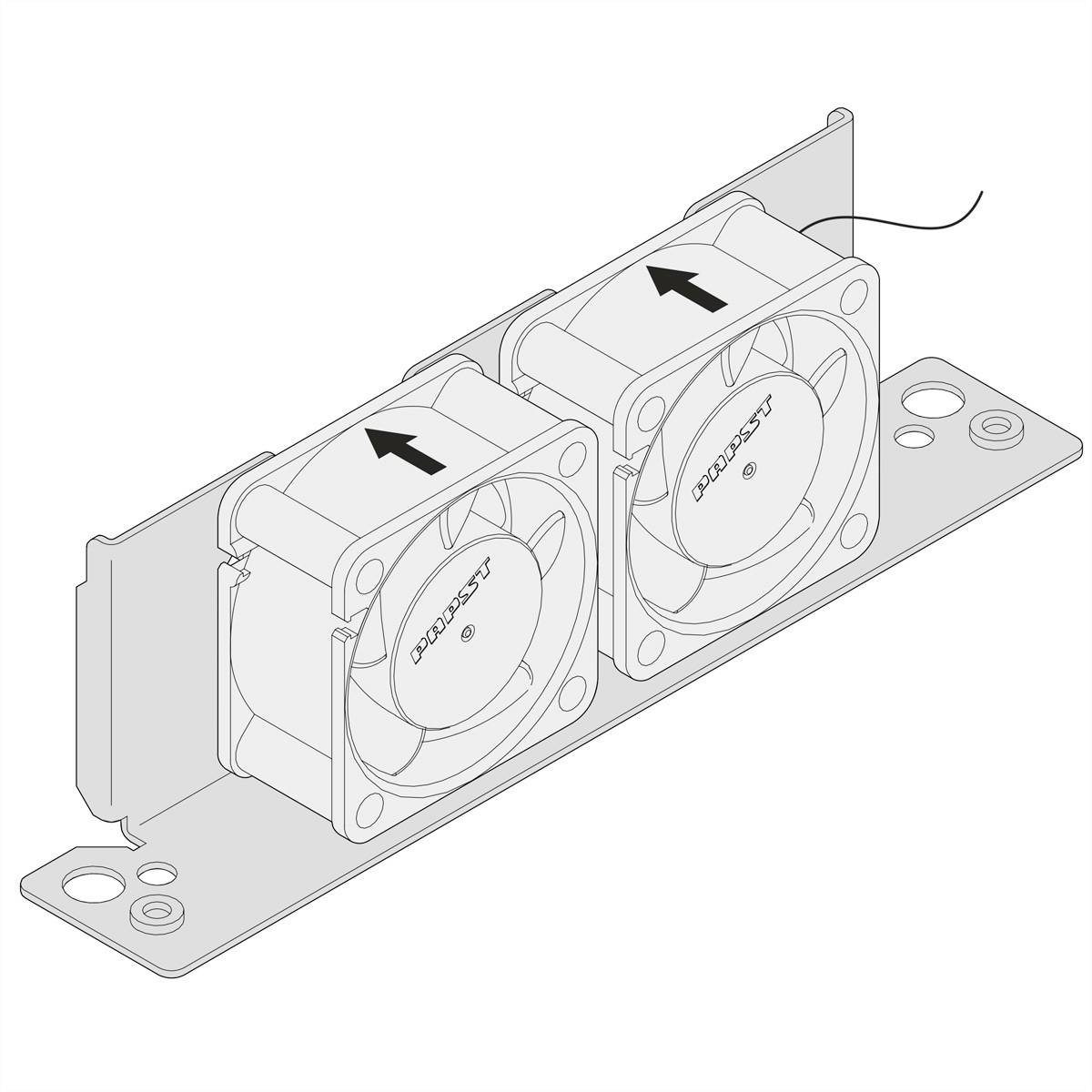

Fan mounting bracket for mounting on the lower side of the casing
The fans can be easily attached with vibration-damping attachment material (rubber fixing cord) at the
Attach the fan bracket

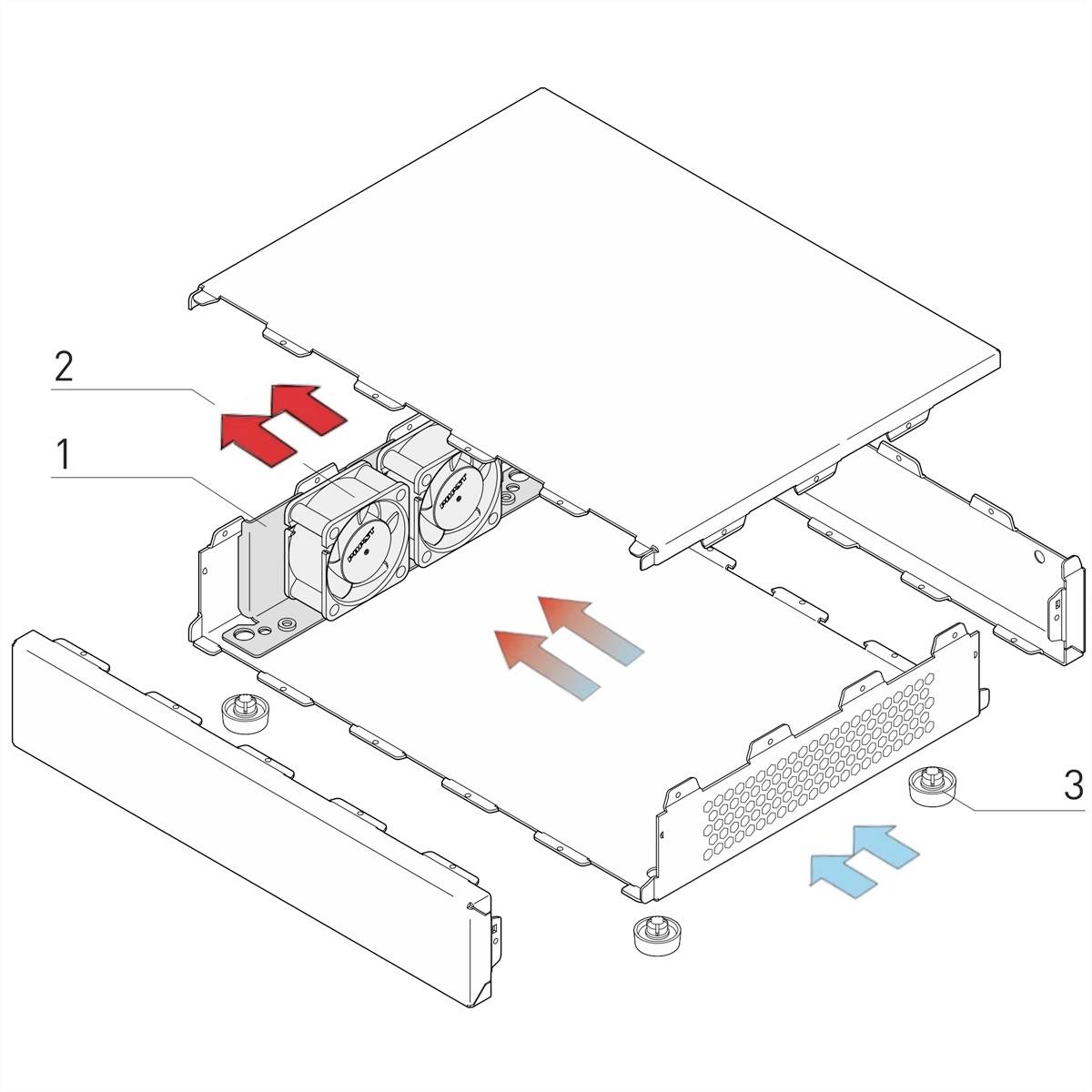

Fan brackets for mounting in desktop casings with 2 plastic feet or in the 19 casing with 2 screws.
The fan bracket cannot be used in connection with the mounting plate (instead, the mounting plate has an integrated one
Using the fan bracket)
This text is machine translated.
Fan mounting bracket for mounting on the lower side of the casing
The fans can be easily attached with vibration-damping attachment material (rubber fixing cord) at the
Attach the fan bracket
Fan brackets for mounting in desktop casings with 2 plastic feet or in the 19 casing with 2 screws.
The fan bracket cannot be used in connection with the mounting plate (instead, the mounting plate has an integrated one
Using the fan bracket)
