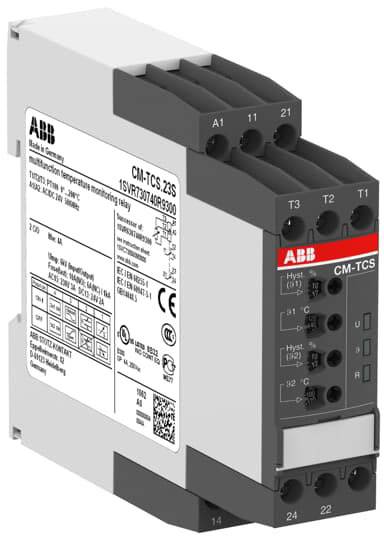

O/L relay ABB CM-TCS.23S 1 pc(s)
Product type
O/L relay
Functions
Temperature monitoring
Type
CM-TCS.23S
Features
+ LED
Connection
Screws
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
O/L relay
- Type
CM-TCS.23S
- Functions
Temperature monitoring
- Features
+ LED
- Connection
Screws
- Width
22.5 mm
- Height
85.6 mm
- Depth
103.7 mm
- Dim
(W x H x D) 22.5 x 85.6 x 103.7 mm
- Content
1 pc(s)
- Nominal voltage
24 V
22.5
78 mm
103 mm
FALSE
Screw connection
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326304 O/L relay ABB CM-TCS.23S 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2326304 O/L relay ABB CM-TCS.23S 1 pc(s)
Description
THE CM-TCS temperature monitoring relays monitor overtemperature, undertemperature or temperatures between thresholds (window monitoring) with PT100 sensors. As soon as the temperature exceeds or falls below the threshold value, the output relays change their position according to the configured functionality and the LEDs on the front of the device indicate the current status.
