OBO Bettermann 1009184 Cable clip 100 pc(s) Metal

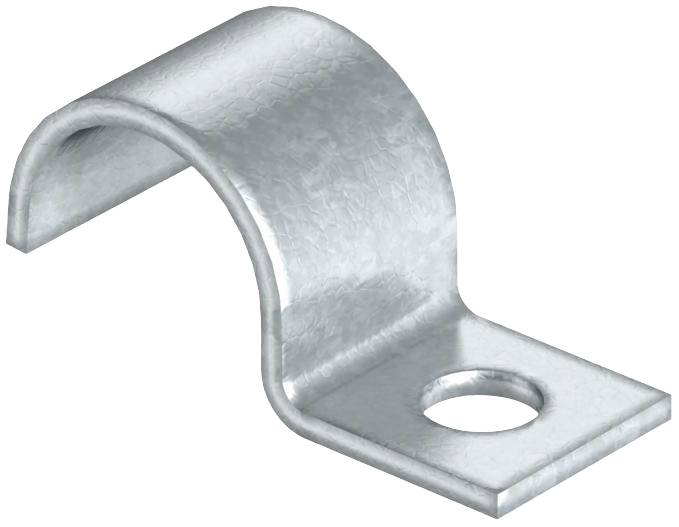

Metal bracket with a hole on one side, bent, presumably for cable or pipe mounting.

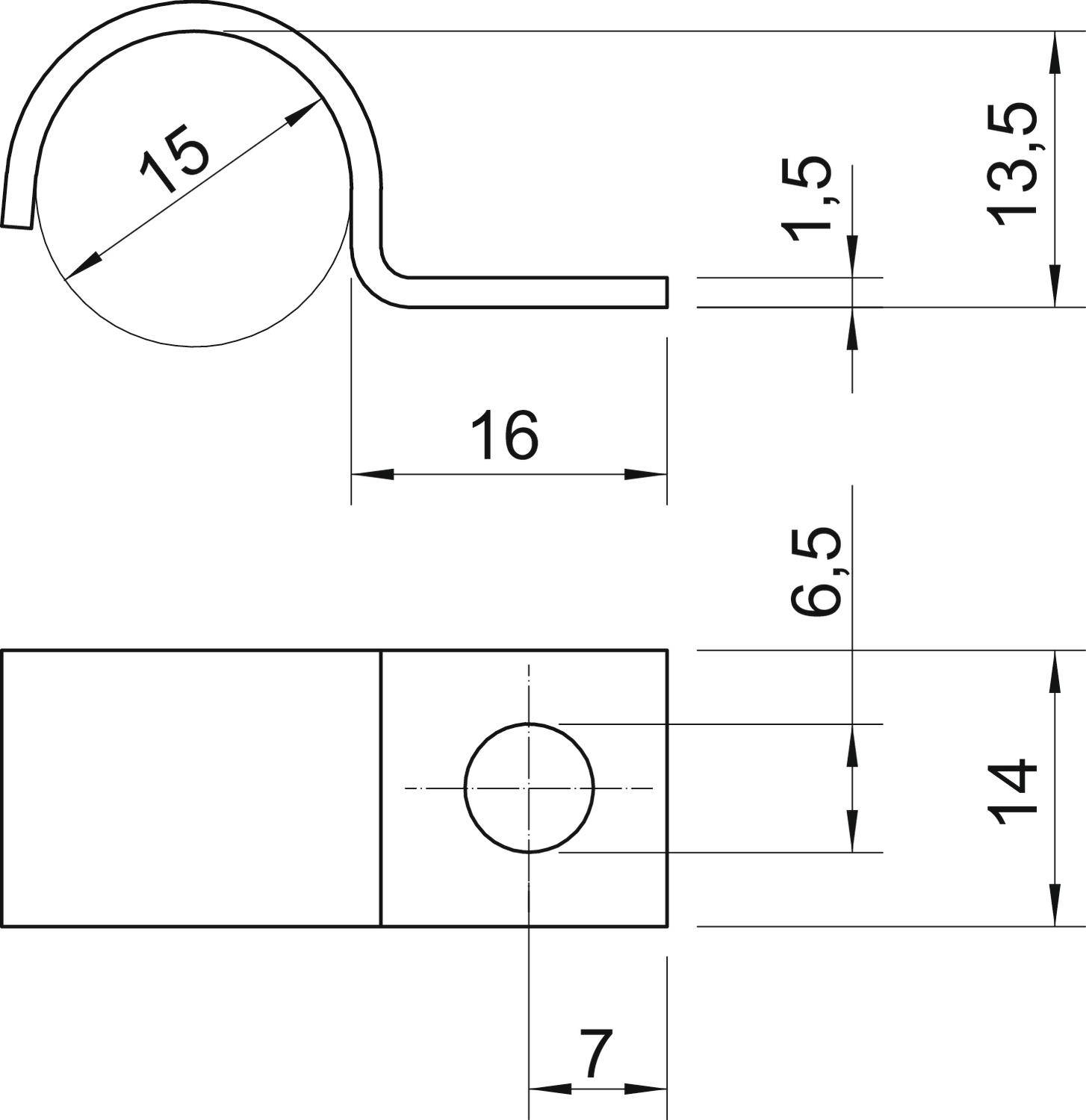

Technical drawing of a component with dimensioning; shows side and top views with millimetre measurements: 15, 16, 1.5, 13.5, 6.5, 14, 7.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Nominal diameter = 15 mm
  • Diameter = 15..15 mm
  • Number of cables/pipes = 1
  • Distance to the wall = No
  • Design = einlappig
  • Mounting type = Screw Hole
  • Material = Steel
  • Electrically/Electrolytically galvanised surface =
  • Halogen-free = Yes
  • UV-resistant = Yes
  • Suitable in the fire protection range = No
  • Plastic sheath = No
Product type

Cable clip

Component

Cable mount

Content

100 pc(s)

Factory colour

Metal

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1956159 OBO Bettermann 1009184 Cable clip 100 pc(s) Metal

Description

Einlappige attachment clip for cable and pipes
