OBO Bettermann 1014021 Pipe clamp 100 pc(s) Metal

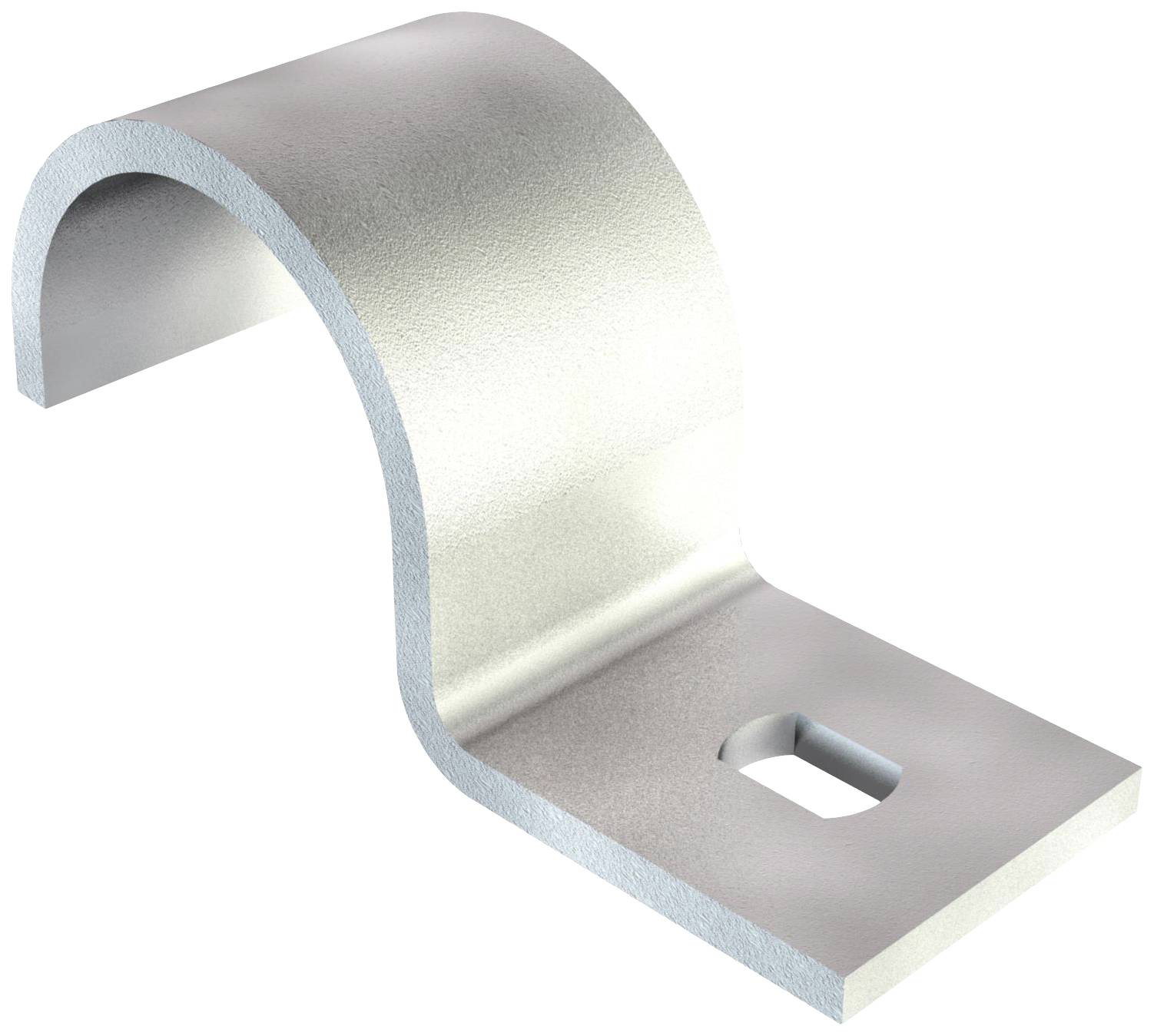

Metal U-shaped bracket with a rectangular base and an oval hole for mounting.

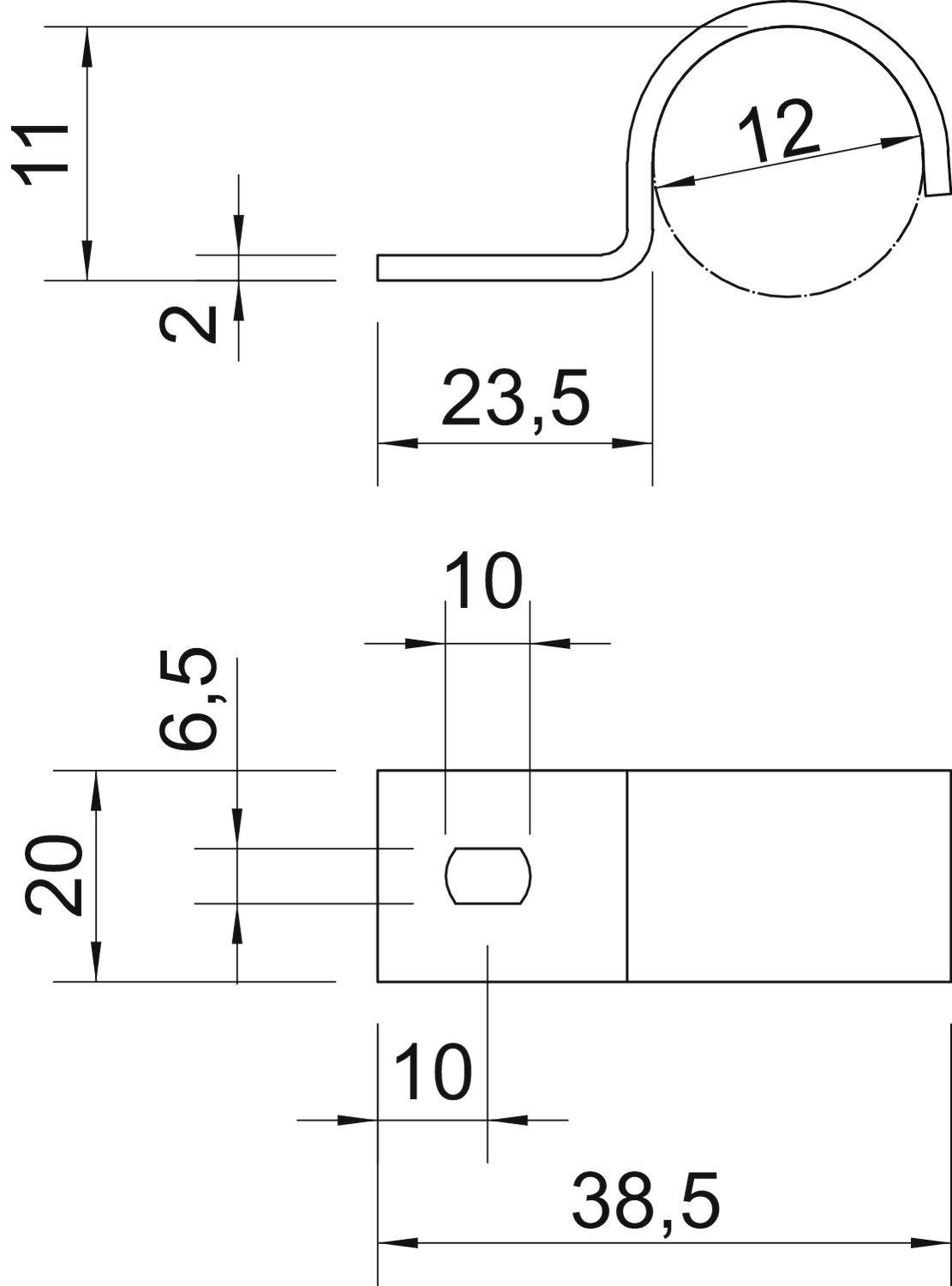

Technical drawing of a metal bracket: Side view with dimensions in millimetres. Rectangular base, circular top surface.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Nominal diameter = 12 mm
  • Diameter = 12 .12 mm
  • Number of cables/pipes = 1
  • Distance to the wall = No
  • Design = einlappig
  • Mounting type = Screw Hole
  • Material = Steel
  • Surface = hot-dip galvanised
  • Halogen-free = Yes
  • UV-resistant = Yes
  • Suitable in the fire protection range = No
  • Plastic sheath = No
Product type

Pipe clamp

Component

Universal wire clip

Content

100 pc(s)

Factory colour

Metal

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1961506 OBO Bettermann 1014021 Pipe clamp 100 pc(s) Metal

Description

Einlappige attachment clip for cable and pipes
