OBO Bettermann 1018717 Pipe clamp 25 pc(s) Metal

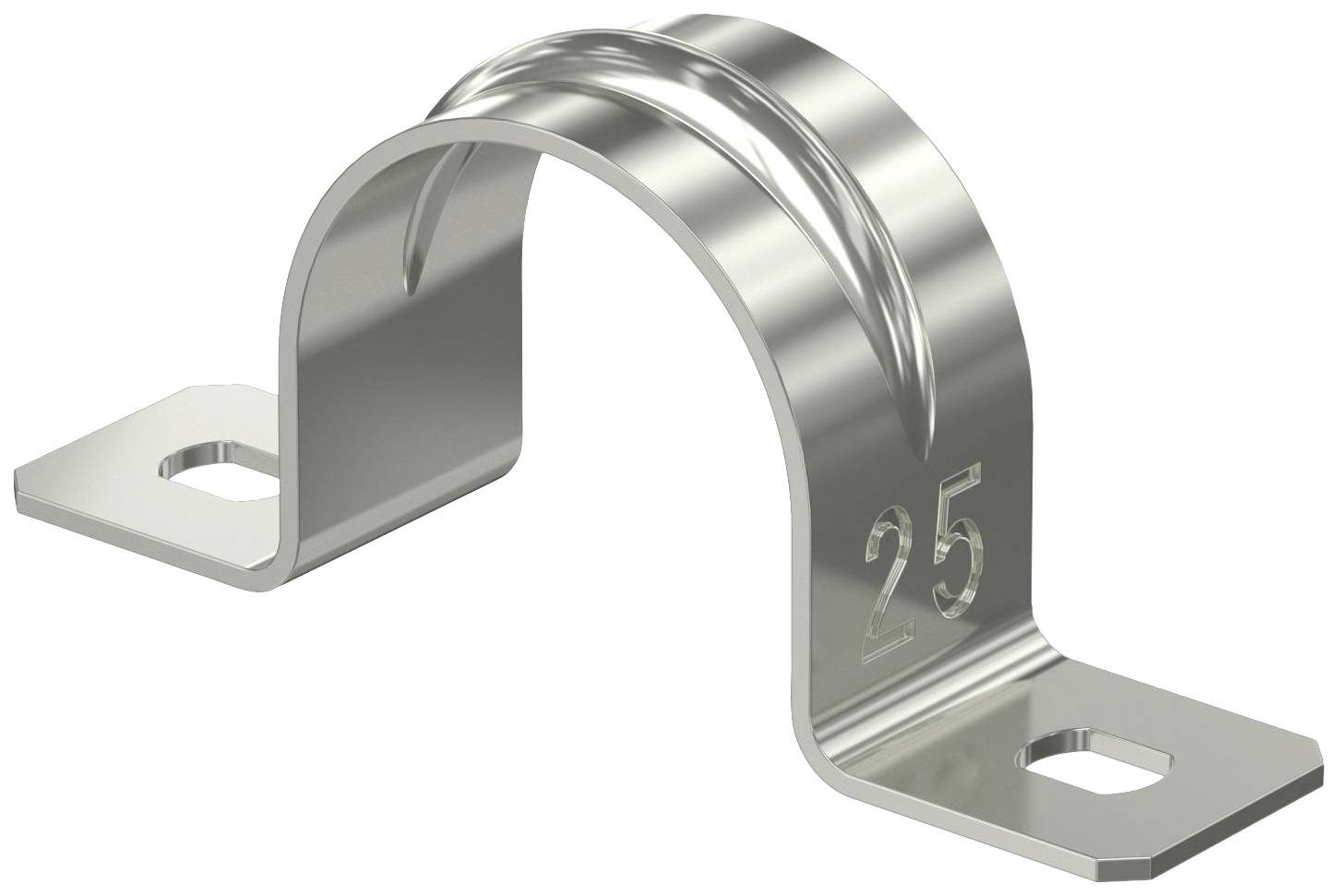

Metal pipe clip for securing pipes with a size of 25 mm, with two fixing holes on the sides.

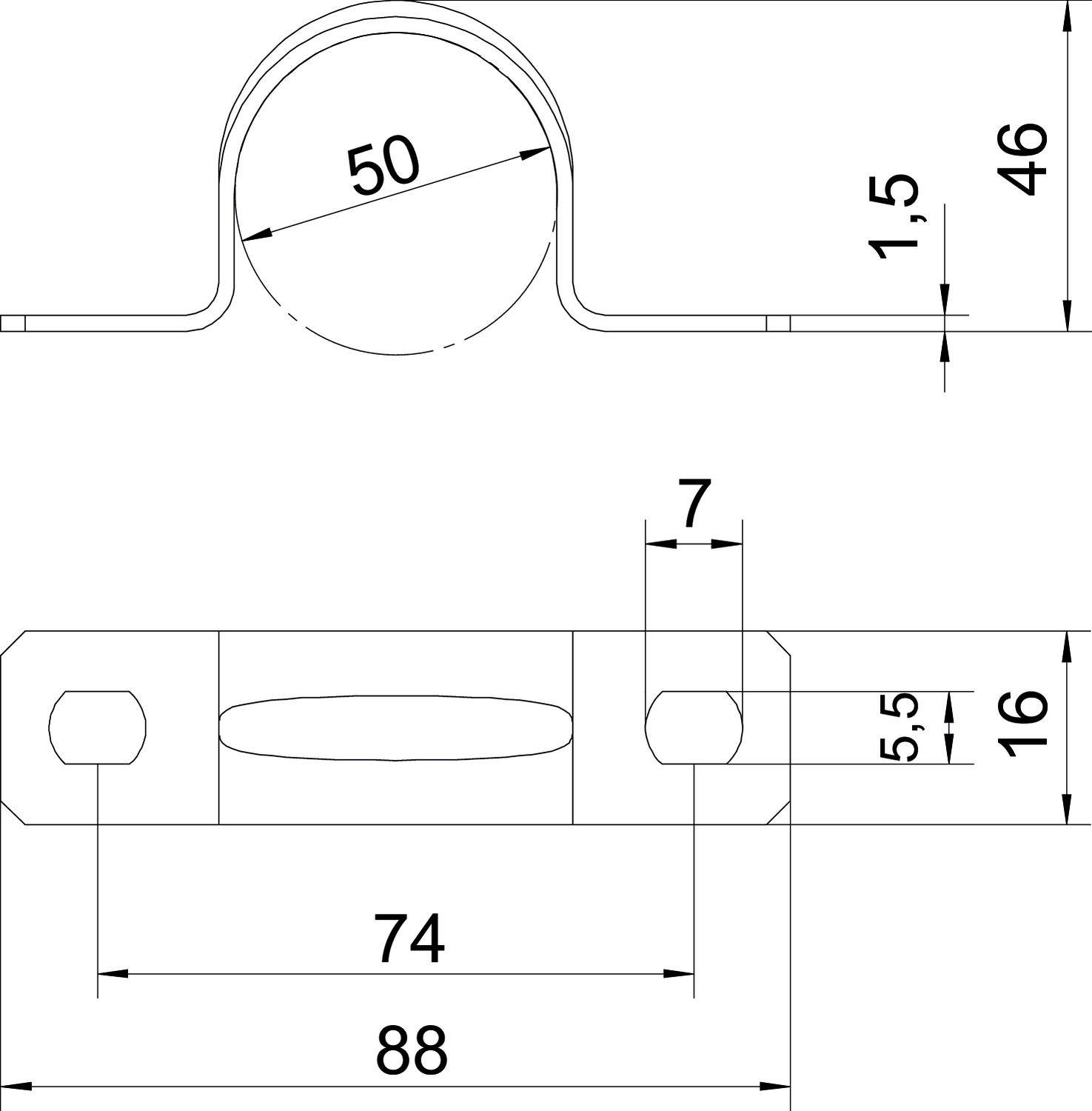

Technical drawing of a mounting bracket with the following dimensions: Circular diameter 50, height 46, width 88, mounting holes 5.5, spacings 7 and 16.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Nominal diameter = 50 mm
  • Number of cables/pipes = 1
  • Distance to the wall = No
  • Design = zweilappig
  • Mounting type = Screw Hole
  • Material = rust free steel
  • Material good = rust free steel (V4A)
  • Surface = untreated
  • Halogen-free = Yes
  • UV-resistant = Yes
  • Plastic sheath = No
Product type

Pipe clamp

Component

Clamp

Content

25 pc(s)

Factory colour

Metal

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1959993 OBO Bettermann 1018717 Pipe clamp 25 pc(s) Metal

Description

Zweilappige attachment clip for cable and pipes

This text is machine translated.
