OBO Bettermann 1104589 Rail (L x W x H) 500 x 35 x 18 mm 10 pc(s) Metal
EAN:
Part number:
Item no:

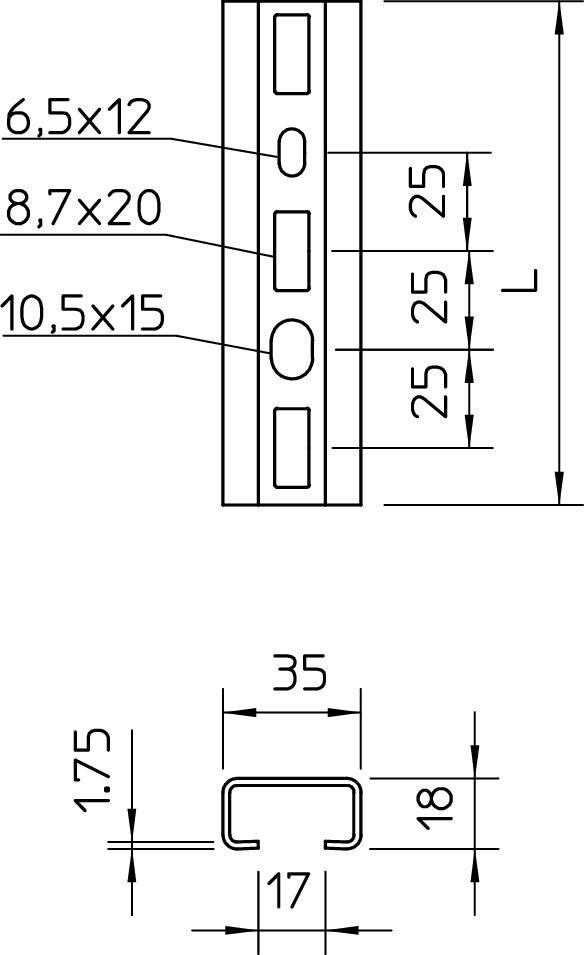

Technical specifications
- Length = 500 mm
- Width = 35 mm
- Height = 18 mm
- Slot width = 17 mm
- Material thickness = 1.75 mm
- Profile form = C-profile
- Design = simply profile
- Type the punch = back punched
- With teeth = No
- Snap-off = No
- Suitable for function receives = No
- Material = Steel
- Material good = other
- Surface = diving hot-dip galvanised
- Product type
Rail
- Content
10 pc(s)
- Factory colour
Metal
- Dim
(L x W x H) 500 x 35 x 18 mm
- Length
500 mm
- Width
35 mm
- Height
18 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965149 OBO Bettermann 1104589 Rail (L x W x H) 500 x 35 x 18 mm 10 pc(s) Metal
Description

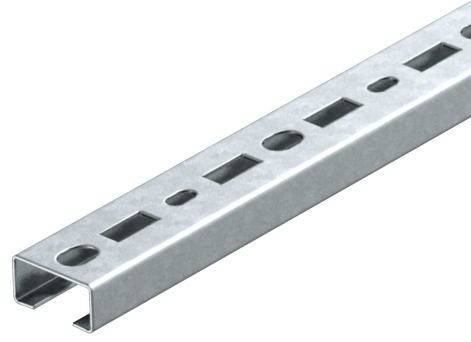

Medium C-section profile rail for laying cable, in connection with retaining clamps with hammerkopf-fu ss. Can also be used as hanging construction for cable carrying systems.
