OBO Bettermann 1121336 Rail (L x W x H) 900 x 50 x 30 mm 1 pc(s) Metal
EAN:
Part number:
Item no:

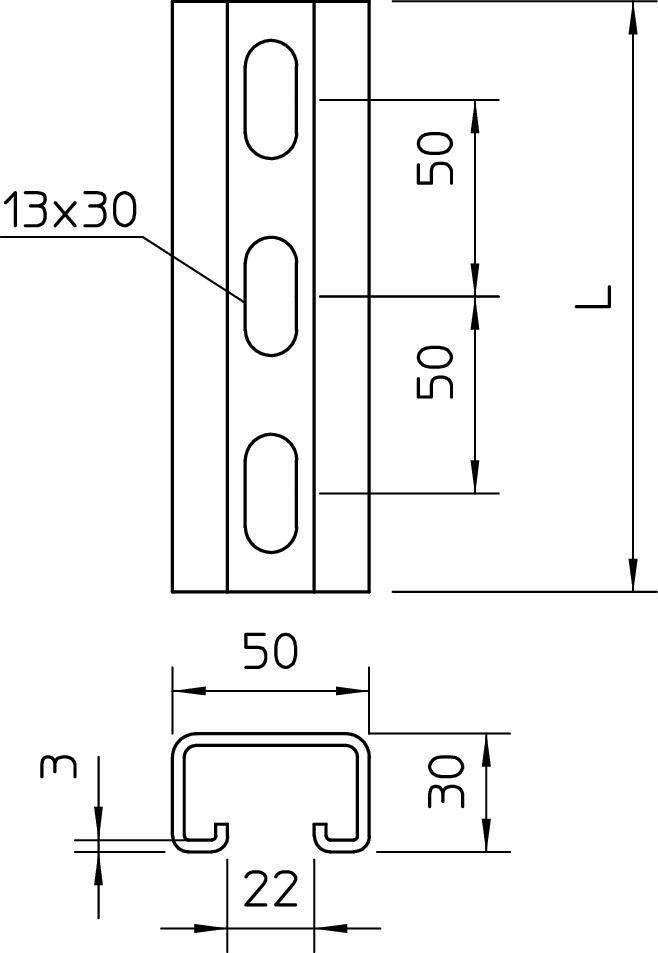

Technical specifications
- Length = 900 mm
- Width = 50 mm
- Height = 30 mm
- Slot width = 22 mm
- Material thickness = 3 mm
- Profile form = C-profile
- Design = simply profile
- Type the punch = back punched
- Hole Width = 13 mm
- With teeth = No
- Snap-off = No
- Suitable for function receives = No
- Material = Steel
- Material good = other
- Surface = diving hot-dip galvanised
- Product type
Rail
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(L x W x H) 900 x 50 x 30 mm
- Length
900 mm
- Width
50 mm
- Height
30 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958265 OBO Bettermann 1121336 Rail (L x W x H) 900 x 50 x 30 mm 1 pc(s) Metal
Description
The Rail type CPS 5 is used as a mounting rail directly on the wall. The rail is equipped with long holes and enables the compensatory measure of differences when assembling. The galvanised design is only suitable for indoor use, the stainless steel design is also suitable for outdoor use.
