OBO Bettermann 1122676 Rail (L x W x H) 3 m x 41.00 mm x 82.00 mm 3 m
EAN:
Part number:
Item no:

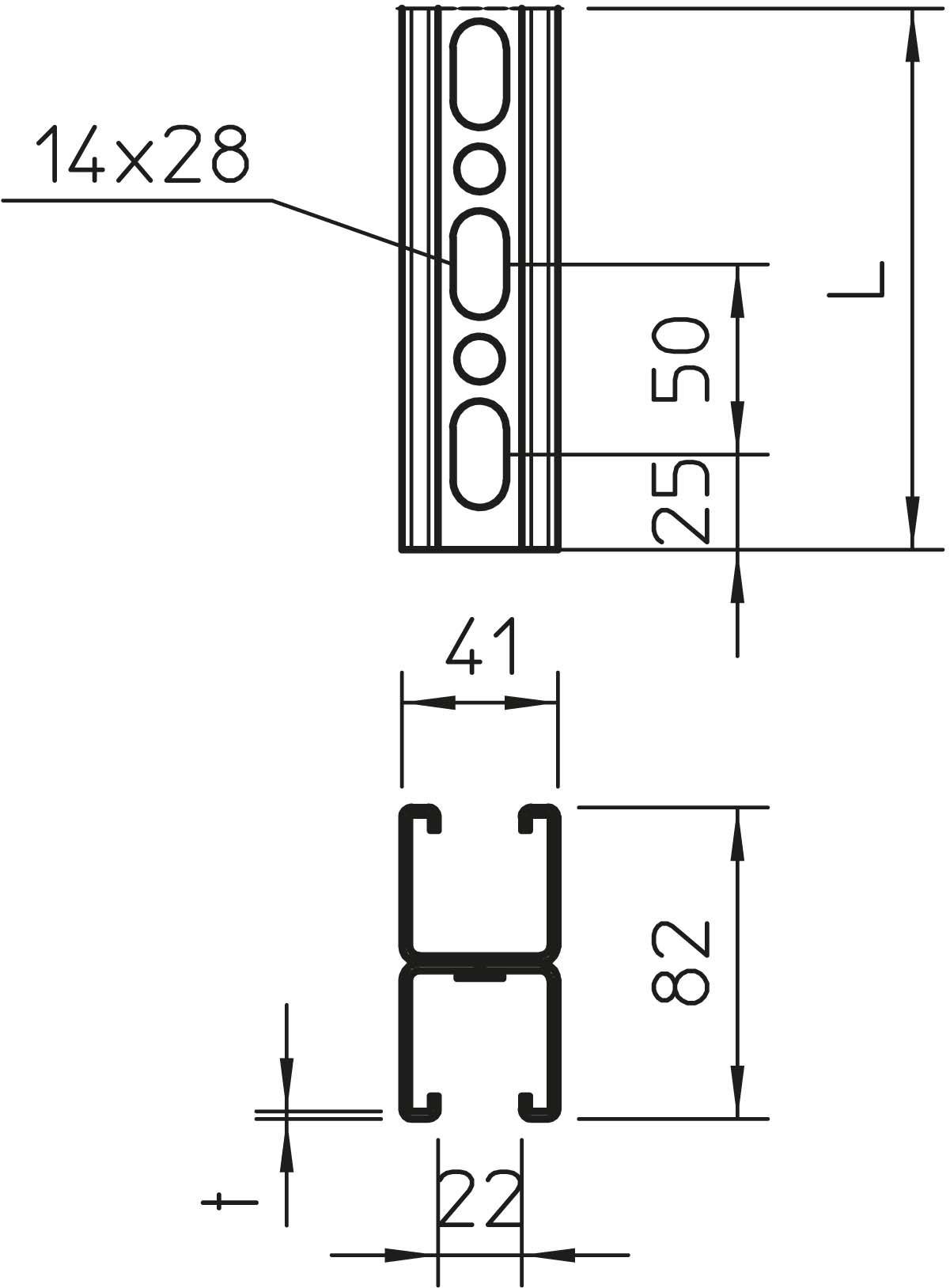

Technical specifications
- Length: 3000 mm
- Width 41 mm
- Height: 82 mm
- Slot width 22 mm
- Material thickness 2 mm.
- Profile: C-Profile
- Design: Double profile
- Type of hole: Perforated bridge
- With teeth: Yes
- Cancelled: No.
- Surface moment of inertia ly: 30.69 cm4
- Surface moment of inertia LZ: 15.11 cm4
- Resistance torque Wy: 2.51 cc
- Resistance torque WZ: 2.69 cm3
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Zinc-plated strip
- Weight: 4.02 kg
- Product type
Rail
- Type
Double profile
- Content
3 m
- Dim
(L x W x H) 3 m x 41.00 mm x 82.00 mm
- Length
3 m
- Width
41.00 mm
- Height
82.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406252 OBO Bettermann 1122676 Rail (L x W x H) 3 m x 41.00 mm x 82.00 mm 3 m
Description

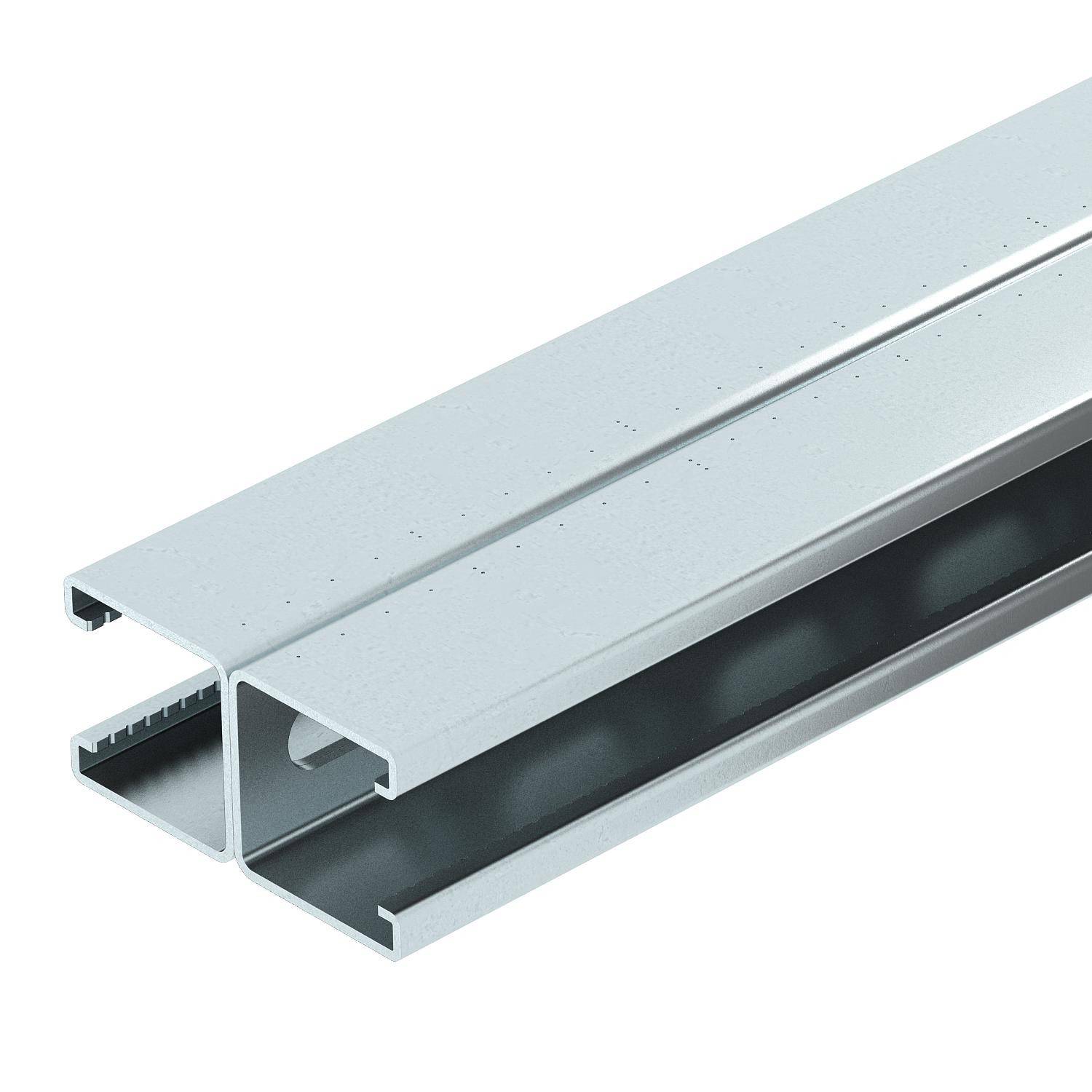

Profile-/mounting rail with continuous punching in the base in heavy design and 22 mm slot width. In a double version, i.e. two profile rails are connected (clipped) at the bottom.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m Profile rail
