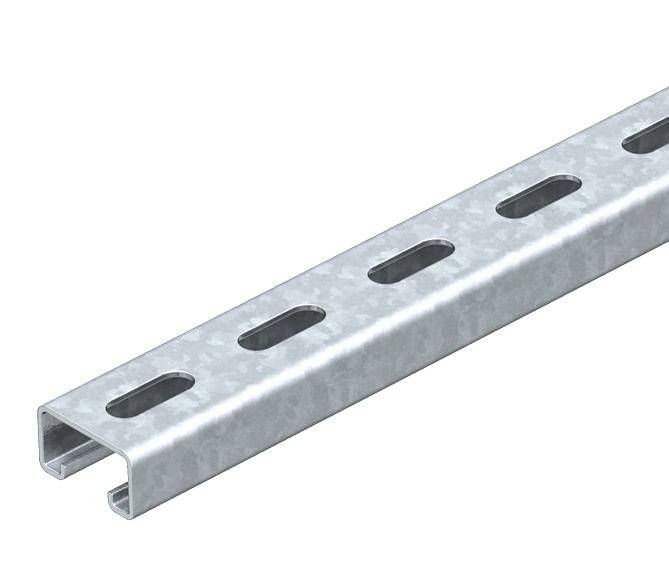

OBO Bettermann 1122936 Rail (L x W x H) 500 x 41 x 21 mm 1 pc(s) Metal
EAN:
Part number:
Item no:

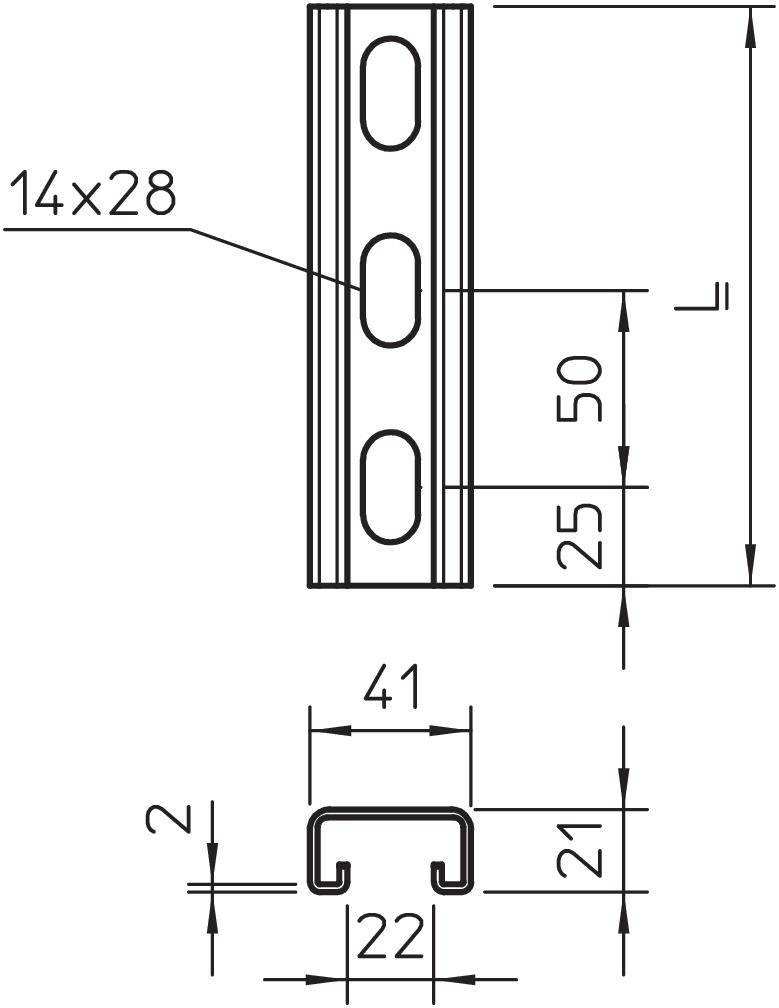

Technical specifications
- Length = 500 mm
- Width = 41 mm
- Height = 21 mm
- Slot width = 22 mm
- Material thickness = 2 mm
- Profile form = C-profile
- Design = simply profile
- Type the punch = back punched
- Hole Width = 14 mm
- Snap-off = No
- Suitable for function receives = No
- Material = Steel
- Material good = other
- Surface = diving hot-dip galvanised
- Product type
Rail
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(L x W x H) 500 x 41 x 21 mm
- Length
500 mm
- Width
41 mm
- Height
21 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962145 OBO Bettermann 1122936 Rail (L x W x H) 500 x 41 x 21 mm 1 pc(s) Metal
Description
Heavy C-profile rail for separate installation of carrying constructions, for example, cable channels or as a console for control cabinets. It can also be used for laying cable, in connection with retaining clips with U-base.
