OBO Bettermann 1155407 Clamp 100 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Clamping Range = 8..12 mm
- Max. The number of cable = 1
- Material clamp = Steel
- Surface clamp = hot-dip galvanised
- Material screw = Steel
- Surface bolt = hot-dip galvanised
- Mounting type = profile rail
- With plastic tray = No
- With metal tray = Yes
- Halogen-free = Yes
- Product type
Clamp
- Component
Cable mount
- Content
100 pc(s)
- Factory colour
Metal

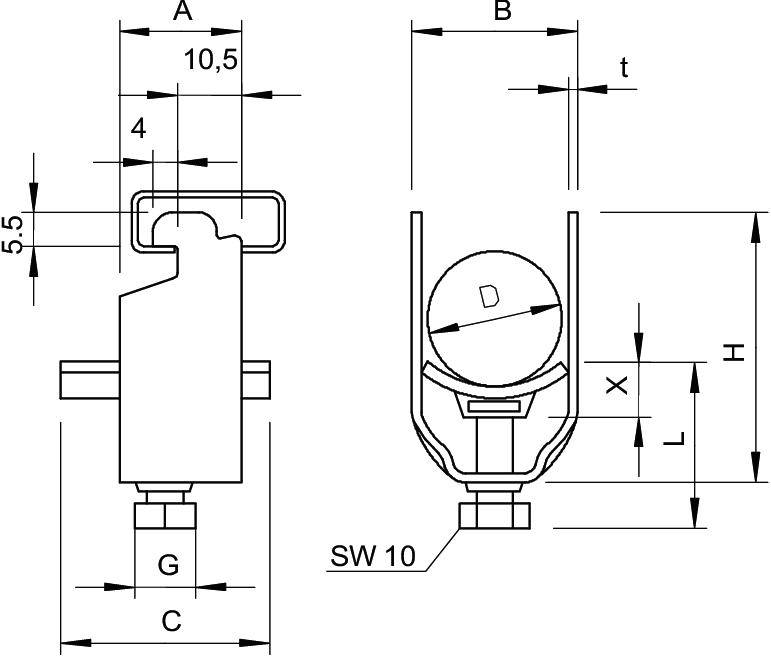

- Dim
(W x H) 18.5 mm x 6.5 mm
- Width
18.5 mm
- Height
6.5 mm
- Clamping range (min.)
8 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961631 OBO Bettermann 1155407 Clamp 100 pc(s) Metal
Description
Suitable for all C-profile rails with 11 - 12 mm slot width; at least 6.5 mm interior height and at least 18.5 mm interior width, metal frames have all sides strongly rounded edges, so that no cable damage is to be feared
