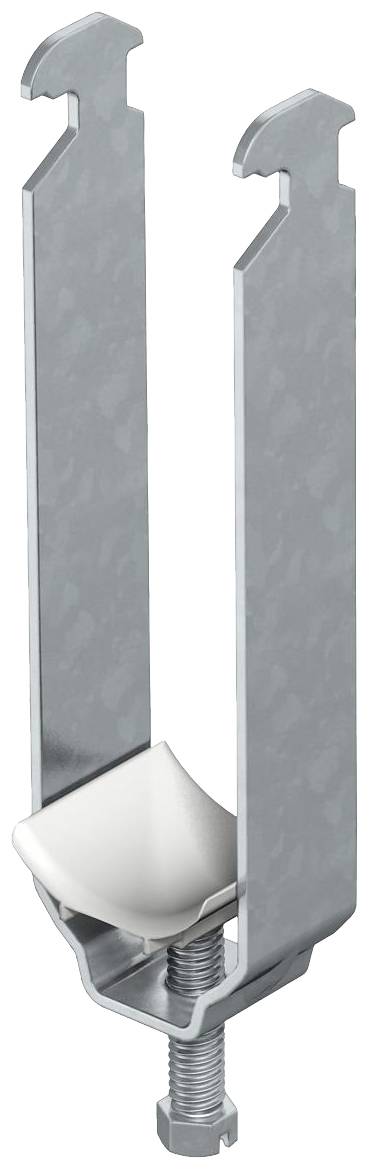

OBO Bettermann 1162225 Clamp 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Clamping range = 16 .22 mm
- For 3 Einleiterkabel = 22 mm
- Max. The number of cable = 3
- Material clamp = Steel
- Surface clamp = hot-dip galvanised
- Material screw = Steel
- Surface bolt = hot-dip galvanised
- Mounting type = profile rail
- With plastic tray = Yes
- With metal tray = No
- Halogen-free = Yes
- Product type
Clamp
- Component
Cable mount
- Content
1 pc(s)
- Factory colour
Metal
- Clamping range (min.)
16 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961610 OBO Bettermann 1162225 Clamp 1 pc(s) Metal
Description
Suitable for all C-profile rails with 16-17 mm slot width, Pressure Basin made of polypropylene, color light gray RAL 7035
