OBO Bettermann 1167058 Clamp 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

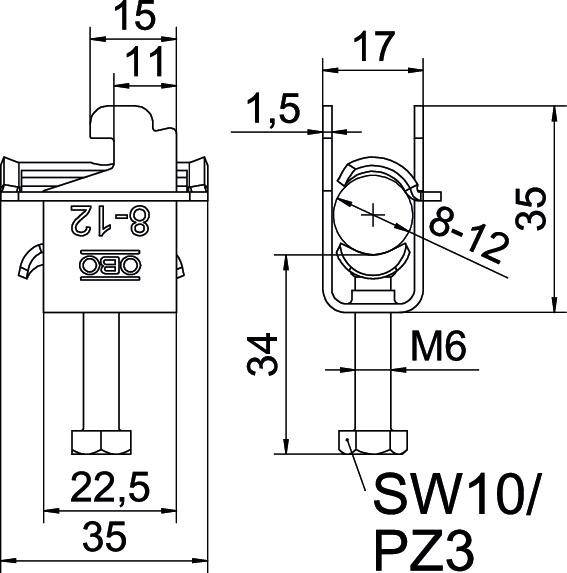

- Clamping range 8..12 mm
- For pipes (metric): 12
- Max. Number of cables: 1
- Material of the clamp: Stainless steel
- Material quality of the clamp: Stainless steel 304 (1.4301)
- Surface protection clamp: Untreated
- Material of tub: Stainless steel
- Material quality of the tray: Stainless steel 304 (1.4301)
- Surface protection trough: Untreated
- Screw material: Stainless steel
- Material quality of screw: Stainless steel 304 (1.4301)
- Surface protection screw: Untreated
- With counter tray: Yes
- Material of counter tray: Stainless steel
- Mounting type: Profile rail
- Halogen-free: Yes
- Product type
Clamp
- Component
Cable mount
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162081 OBO Bettermann 1167058 Clamp 1 pc(s)
Description
Clamp with N-base, metal pressure tub with rounded edges for the cable protection. For electrical connection of the braided shield of shielded cables. For vertical and horizontal mounting of 1 individual cables at C-profile rails. For slotted width 11 - 12 mm. With 1-common screw at press tray, universal hexagonal screw head SW10, with slit and cross-head. Suitable for interior and exterior installation. The cable shield can also be used for equipotential bonding if both ends are connected to the reference potential. Counter tray included.
