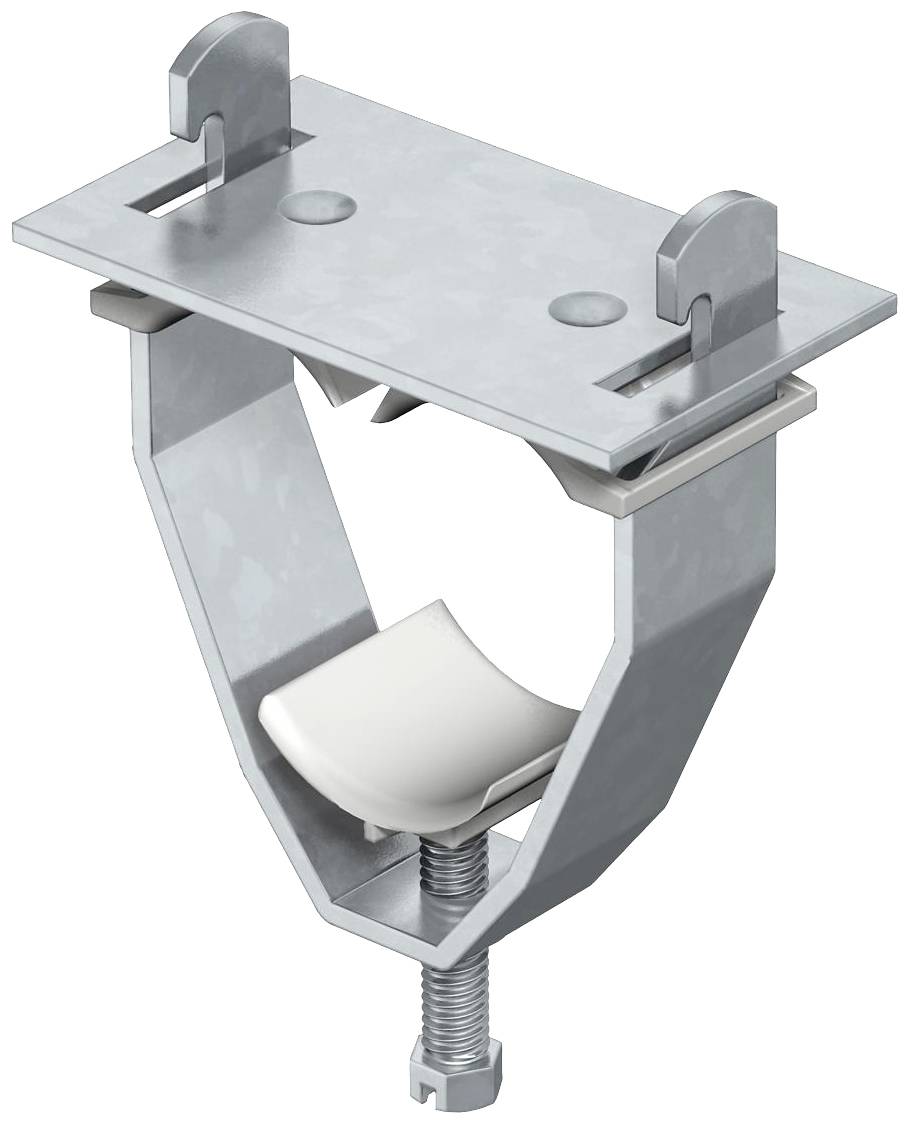

OBO Bettermann 1174509 Clamp 25 pc(s) Metal
EAN:
Part number:
Item no:

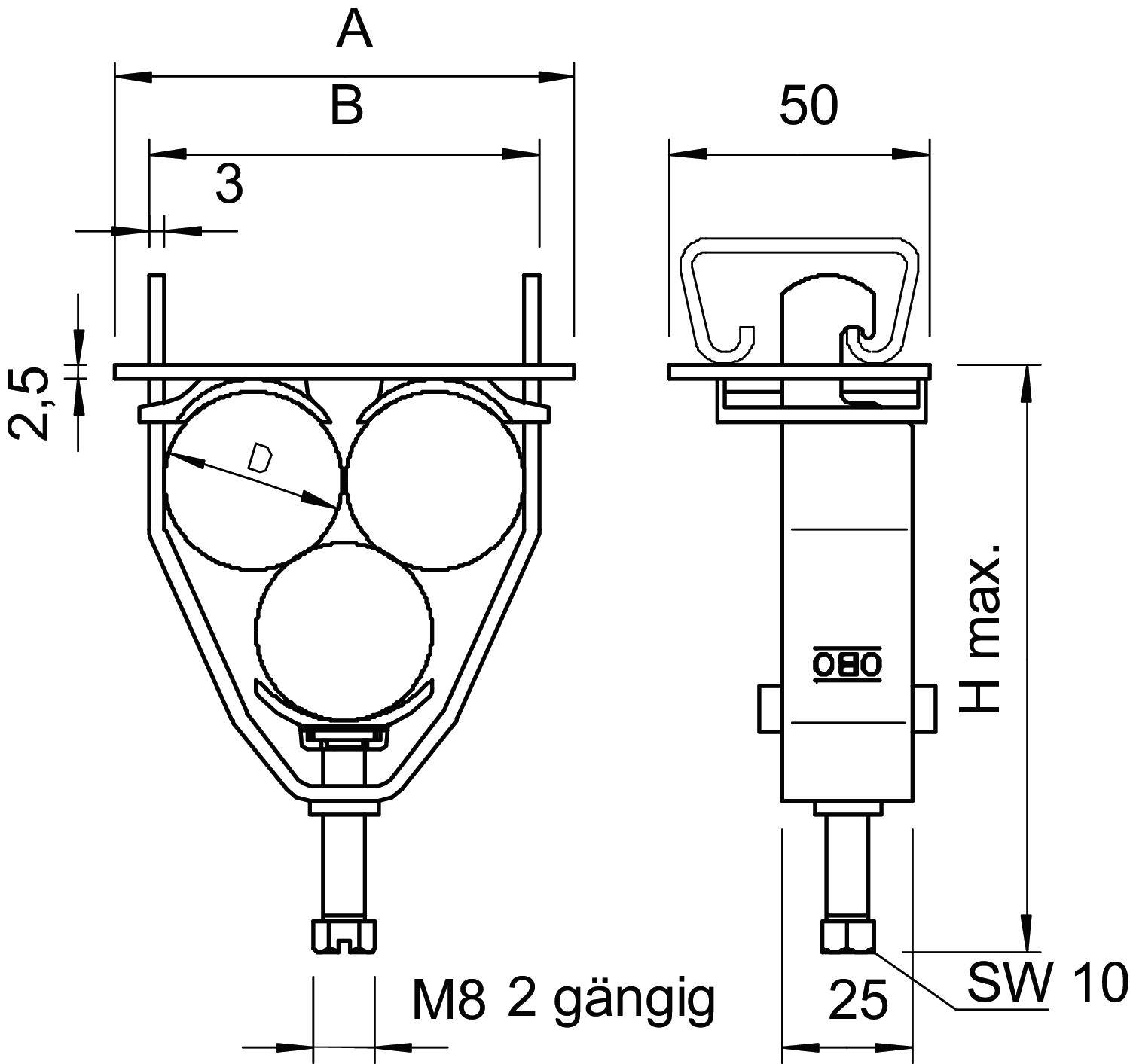

Technical specifications
- Clamping range = 25 .28 mm
- For 3 Einleiterkabel = 28 mm
- Max. The number of cable = 3
- Material clamp = Steel
- Surface clamp = hot-dip galvanised
- Material screw = Steel
- Surface bolt = hot-dip galvanised
- Mounting type = profile rail
- With plastic tray = Yes
- With metal tray = No
- Halogen-free = Yes
- Product type
Clamp
- Component
Cable mount
- Content
25 pc(s)
- Factory colour
Metal
- Clamping range (min.)
25 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964202 OBO Bettermann 1174509 Clamp 25 pc(s) Metal
Description
For system, the laying of einleiter-kabeln in three-phase systems. Since this installation type the magnetic fields will negate each other, here is no warming to fear, and can be used steel clamps
This text is machine translated.
This text is machine translated.
