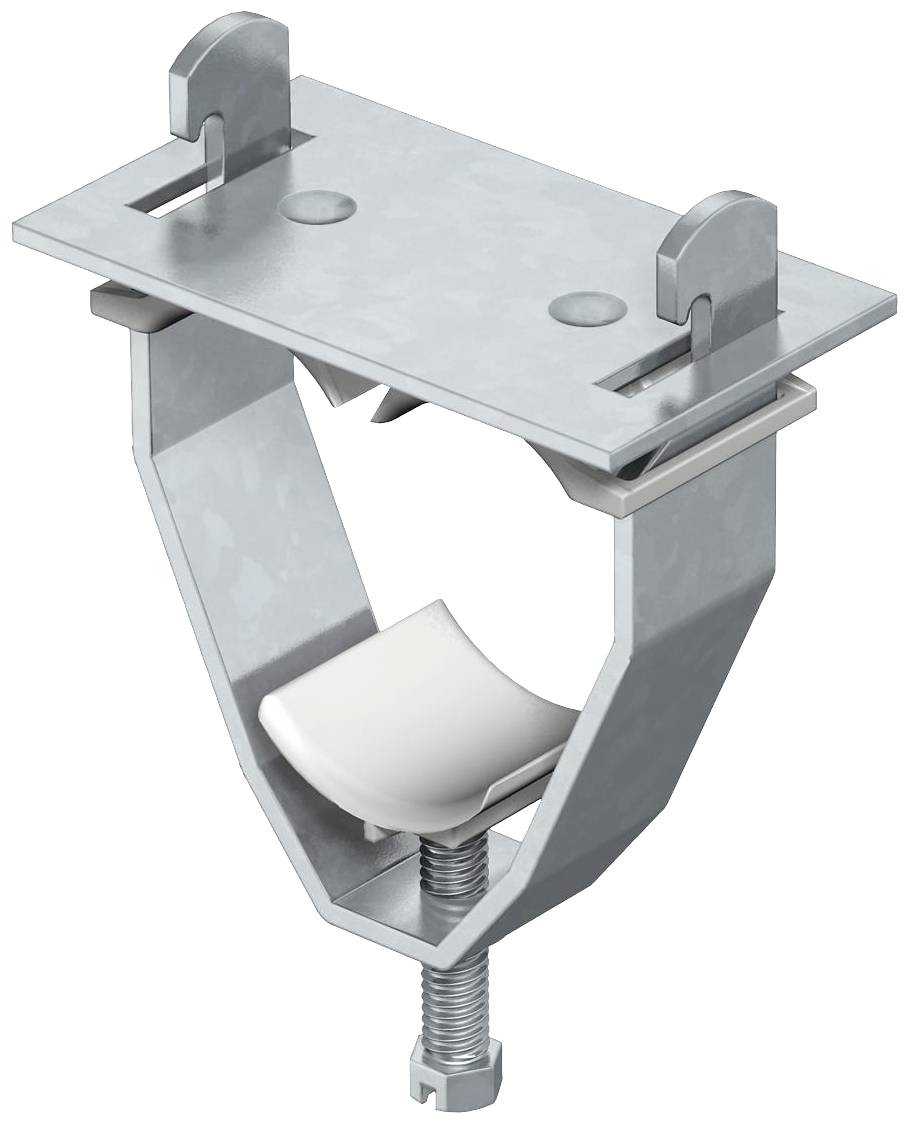

OBO Bettermann 1174576 Clamp 25 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications

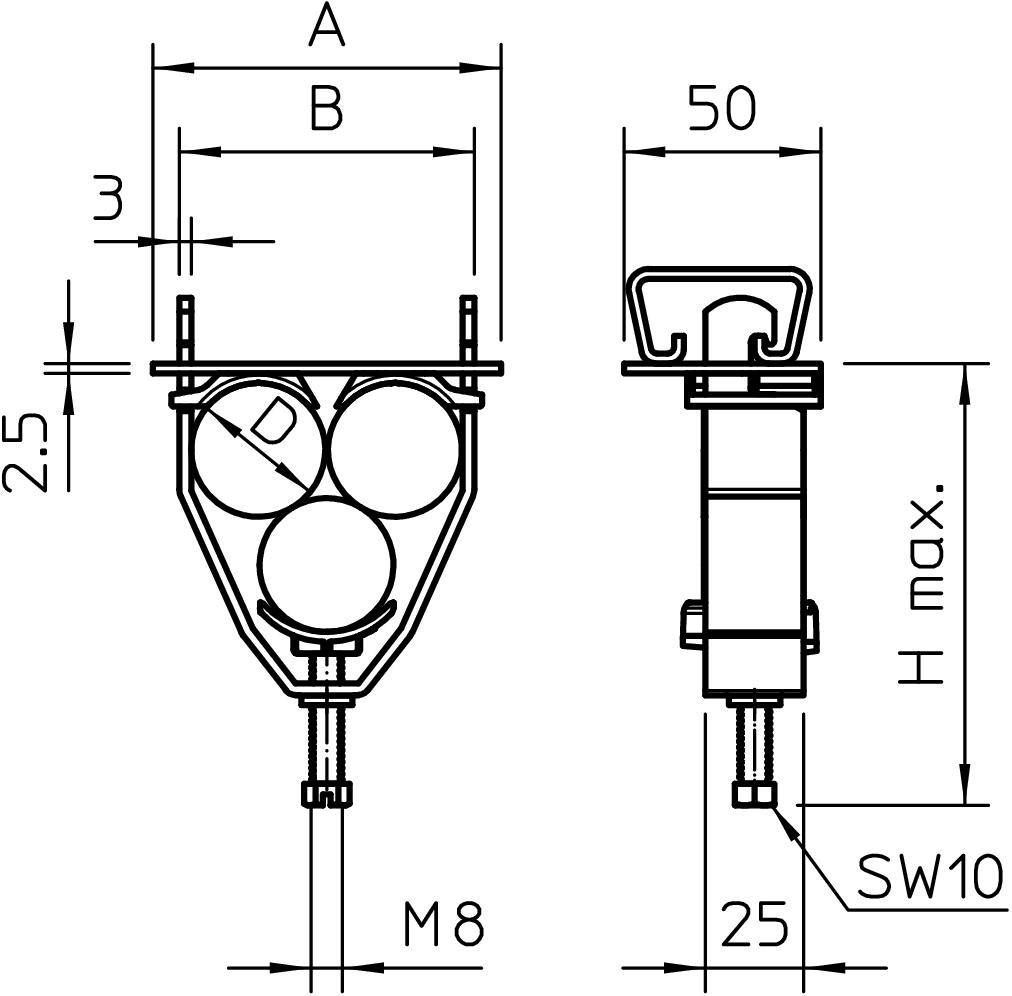

- Clamping range = 40. .44 mm
- For 3 Einleiterkabel = 44 mm
- Max. The number of cable = 3
- Material clamp = Steel
- Surface clamp = hot-dip galvanised
- Material screw = Steel
- Surface bolt = hot-dip galvanised
- Mounting type = profile rail
- With plastic tray = Yes
- With metal tray = No
- Halogen-free = Yes
- Product type
Clamp
- Component
Cable mount
- Content
25 pc(s)
- Factory colour
Metal
- Clamping range (min.)
40 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957428 OBO Bettermann 1174576 Clamp 25 pc(s) Metal
Description
For system, the laying of einleiter-kabeln in three-phase systems. Since this installation type the magnetic fields will negate each other, here is no warming to fear, and can be used steel clamps
